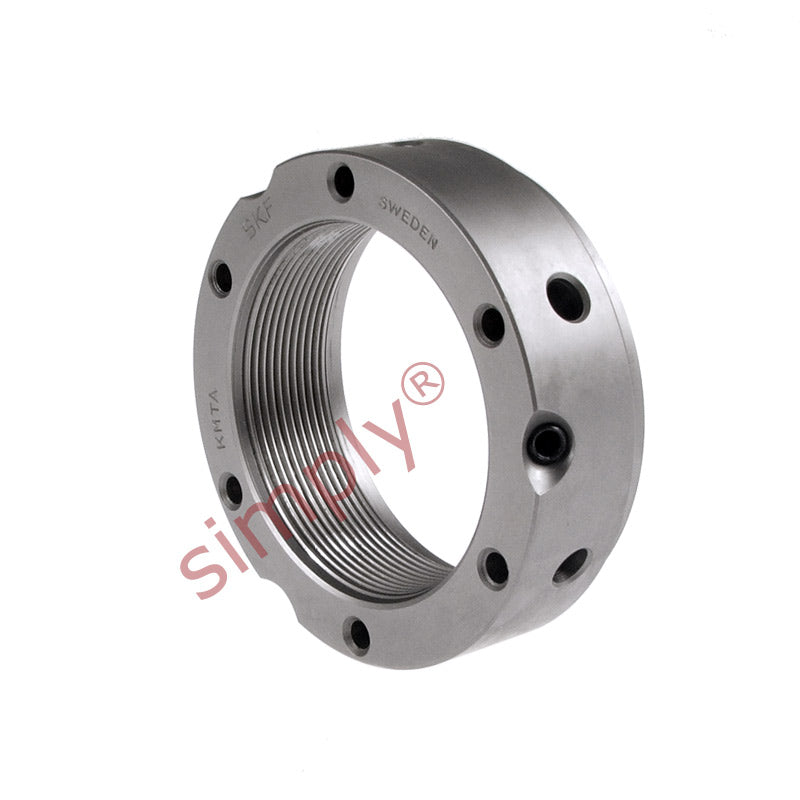

SKF KMTA10 Precision Locking Nut with Locking Pins M50x1.5mm

Name: SKF KMTA10 Precision Locking Nut with Locking Pins M50x1.5mm
Brand: SKF
SKU: KMTA10-SKF
Price: 124.18 USD
Availability: InStock

$124.18 ex VAT

Sale Sold out

In stock

Price Break

10+ $83.18

19+ $78.50

29+ $77.57

39+ $76.64

49+ $75.70

74+ $74.77

99+ $70.09

199+ $69.16

249+ $68.22

499+ $67.29

999+ $65.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: SKF - High Quality
Thread Size:: M50x1.5

Technical

G	M50x1.5
d2	70mm
d3	63mm
d4	52mm
B	24mm
J1	61.5mm
J2	13mm
N1	4.3mm
N2	6mm
Axial load capacity	300 kN
Loosening torque	115 Nm
Weight	0.34 kg
Spanner	B68-75
Grub Screw	M6
Screw torque	8 Nm
Name	KMTA10
