SKU: KMTA11-SKF

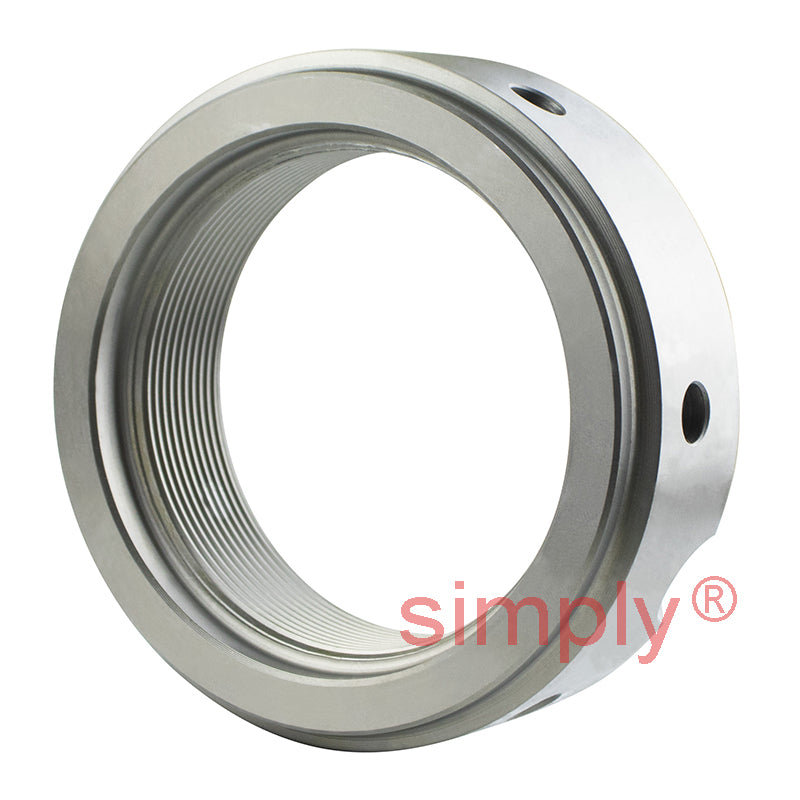

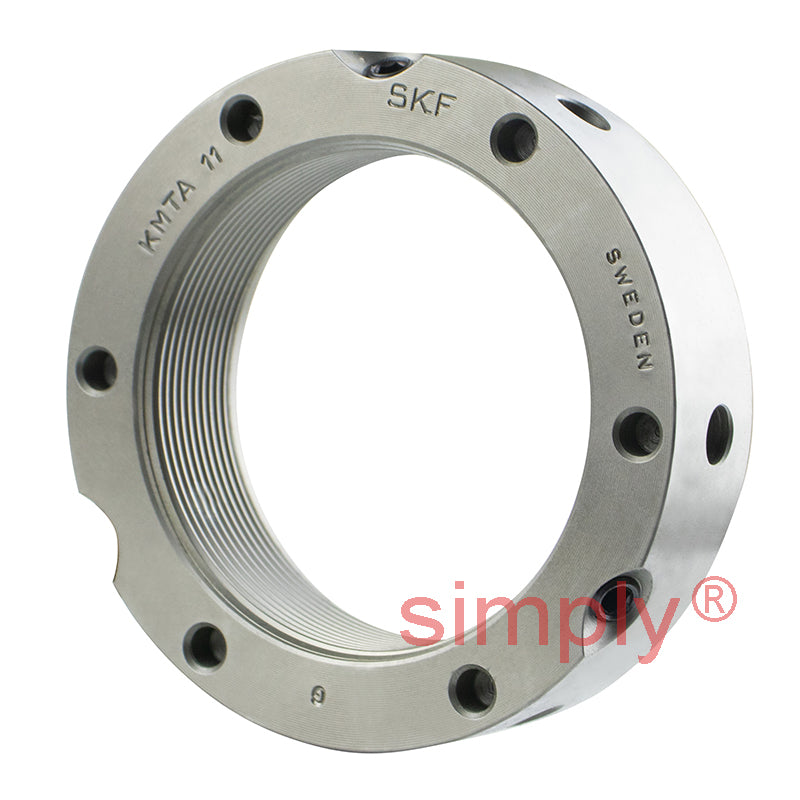

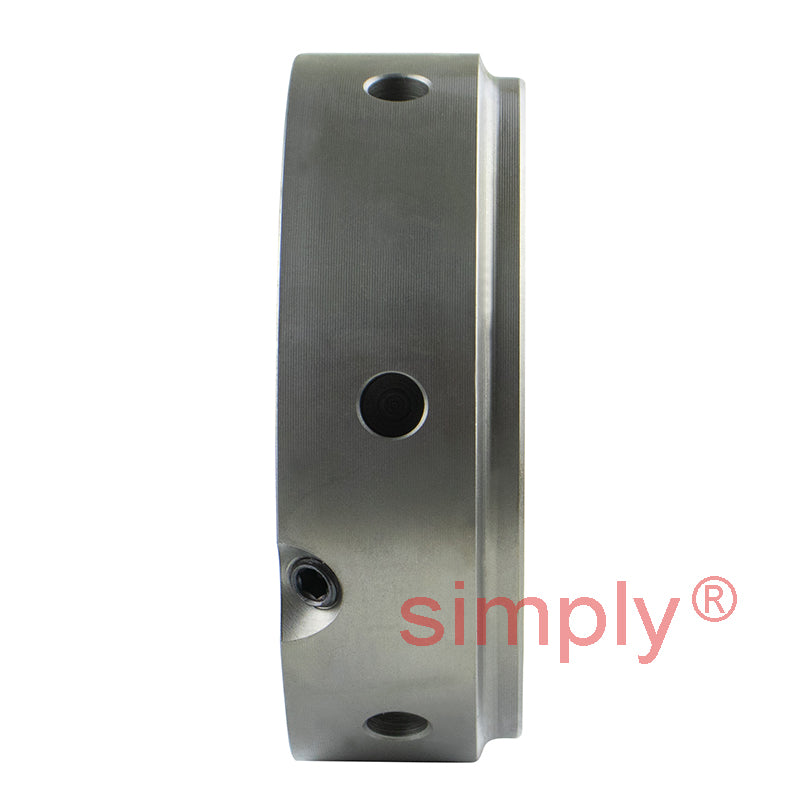

SKF KMTA11 Precision Locking Nut with Locking Pins M55x1.5mm

SKF KMTA11 Precision Locking Nut with Locking Pins M55x1.5mm
$136.11 ex VAT
$136.11 ex VAT
Sale Sold out

In stock

Price Break
10+ $91.17
19+ $86.05
29+ $85.03
39+ $84.00
49+ $82.98
74+ $81.95
99+ $76.83
199+ $75.81
249+ $74.78
499+ $73.76
999+ $71.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M55x1.5
Technical
G M55x1.5
d2 75mm
d3 70mm
d4 58mm
B 24mm
J1 66.5mm
J2 13mm
N1 4.3mm
N2 6mm
Axial load capacity 340 kN
Loosening torque 135 Nm
Weight 0.37 kg
Spanner B68-75
Grub Screw M6
Screw torque 8 Nm
Name KMTA11
