SKU: KMTA13-SKF

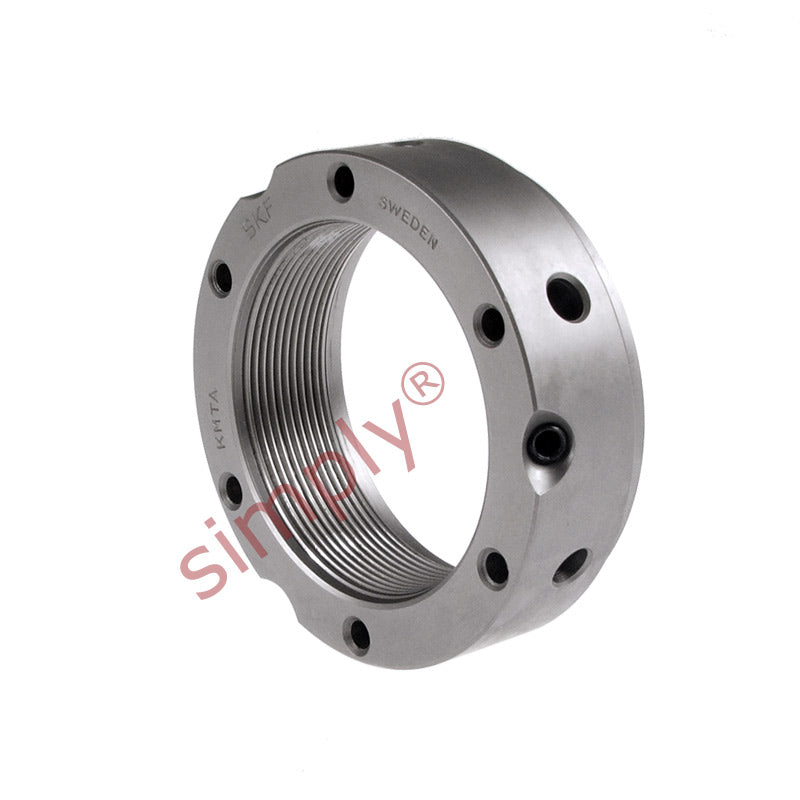

SKF KMTA13 Precision Locking Nut with Locking Pins M65x1.5mm

Name: SKF KMTA13 Precision Locking Nut with Locking Pins M65x1.5mm
Brand: SKF
SKU: KMTA13-SKF
Price: 124.96 USD
Availability: InStock

$124.96 ex VAT

Sale Sold out

Low stock

Price Break

10+ $83.70

19+ $79.00

29+ $78.06

39+ $77.12

49+ $76.18

74+ $75.24

99+ $70.54

199+ $69.60

249+ $68.66

499+ $67.72

999+ $65.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: SKF - High Quality
Thread Size:: M65x1.5

Technical

G	M65x1.5
d2	88mm
d3	80mm
d4	68mm
B	25mm
J1	78.5mm
J2	13mm
N1	5.3mm
N2	6mm
Axial load capacity	460 kN
Loosening torque	170 Nm
Weight	0.52 kg
Spanner	B80-90
Grub Screw	M8
Screw torque	18 Nm
Name	KMTA13
