• SKF KMTA14 Precision Locking Nut with Locking Pins M70x1.5mm
  • SKF KMTA14 Precision Locking Nut with Locking Pins M70x1.5mm
  • SKF KMTA14 Precision Locking Nut with Locking Pins M70x1.5mm
1 3

SKU: KMTA14-SKF

SKF KMTA14 Precision Locking Nut with Locking Pins M70x1.5mm

SKF KMTA14 Precision Locking Nut with Locking Pins M70x1.5mm
$205.87 ex VAT
$205.87 ex VAT
Sale Sold out

In stock

Price Break
10+ $137.89
19+ $130.15
29+ $128.60
39+ $127.05
49+ $125.50
74+ $123.95
99+ $116.20
199+ $114.65
249+ $113.10
499+ $111.55
999+ $108.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

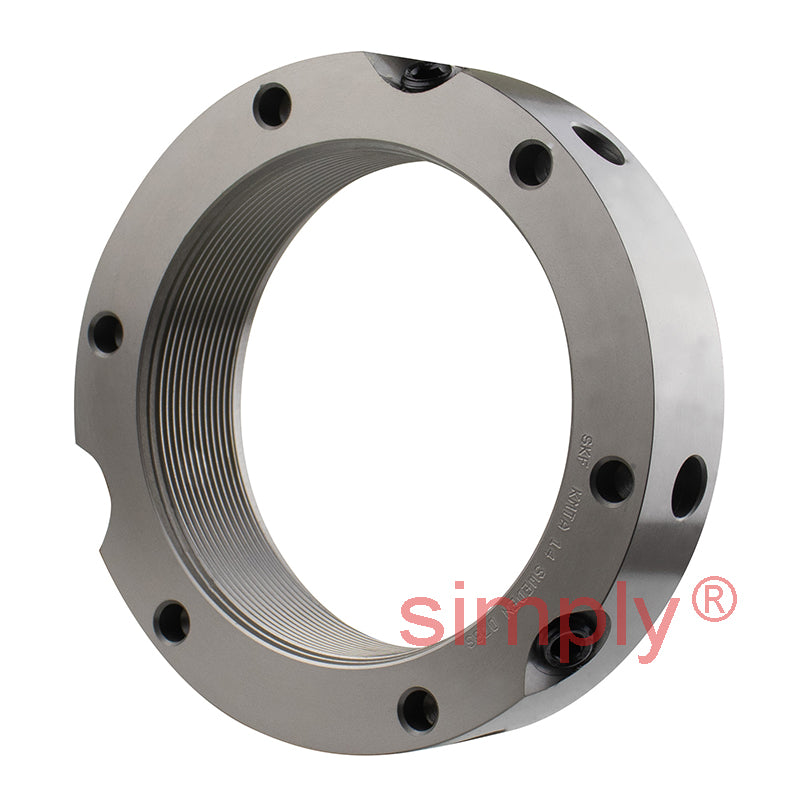

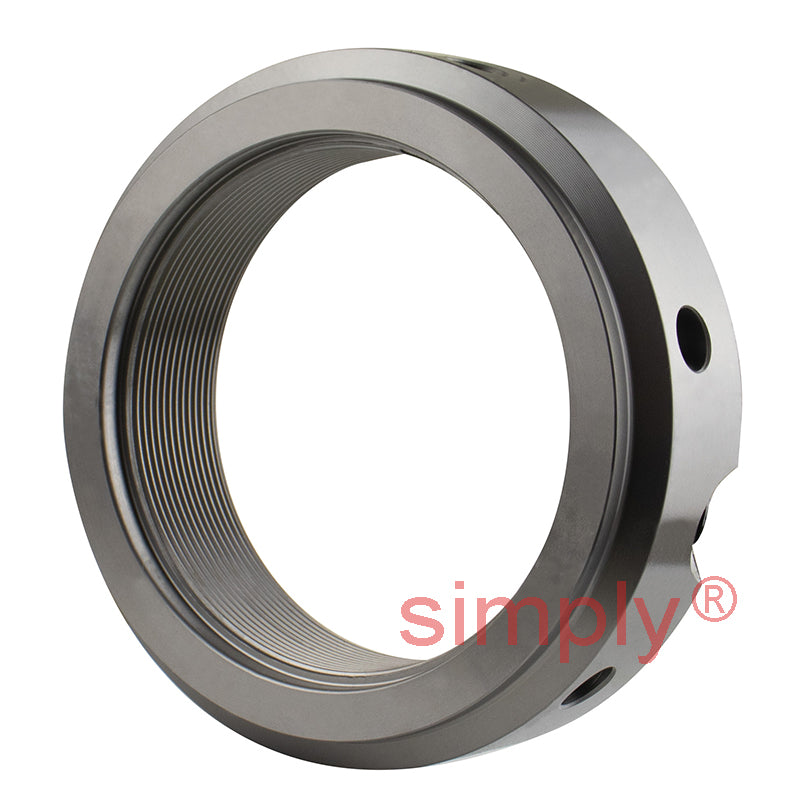

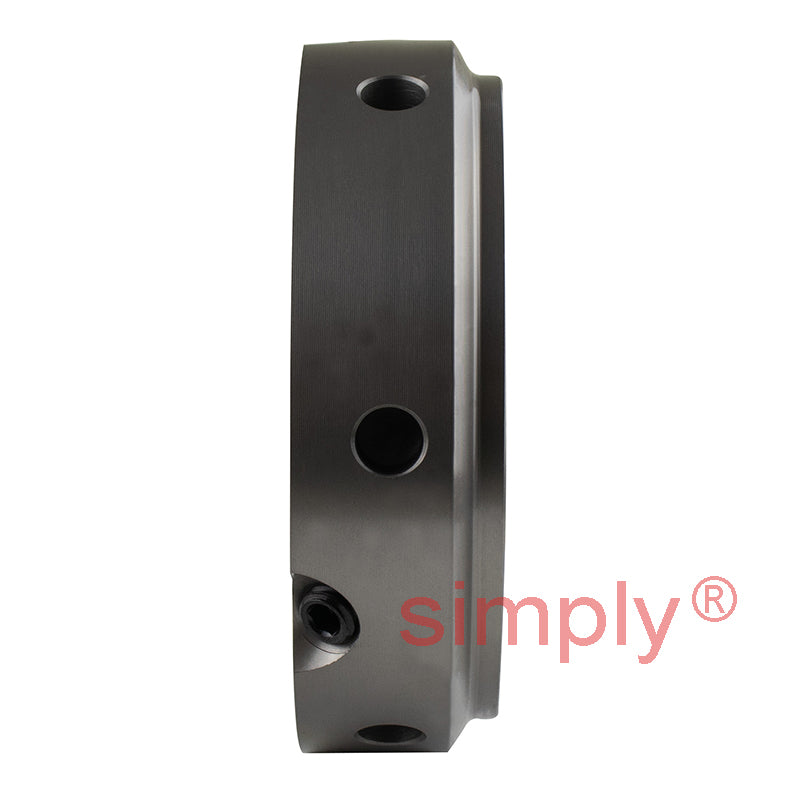

SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M70x1.5
Technical
G M70x1.5
d2 95mm
d3 86mm
d4 72mm
B 26mm
J1 85mm
J2 14mm
N1 5.3mm
N2 8mm
Axial load capacity 490 kN
Loosening torque 285 Nm
Weight 0.62 kg
Spanner B95-100
Grub Screw M8
Screw torque 18 Nm
Name KMTA14
