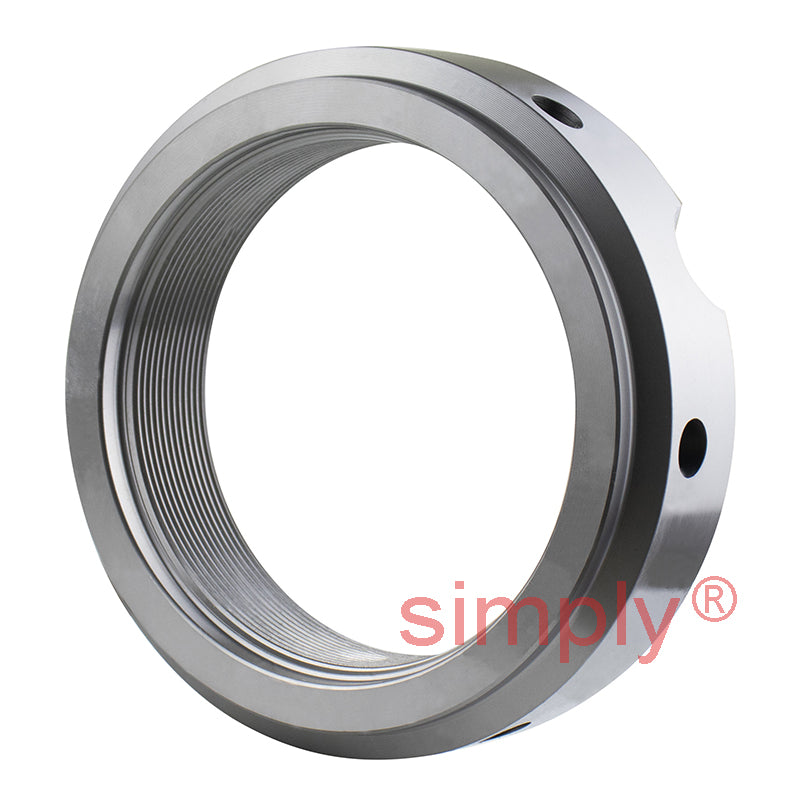

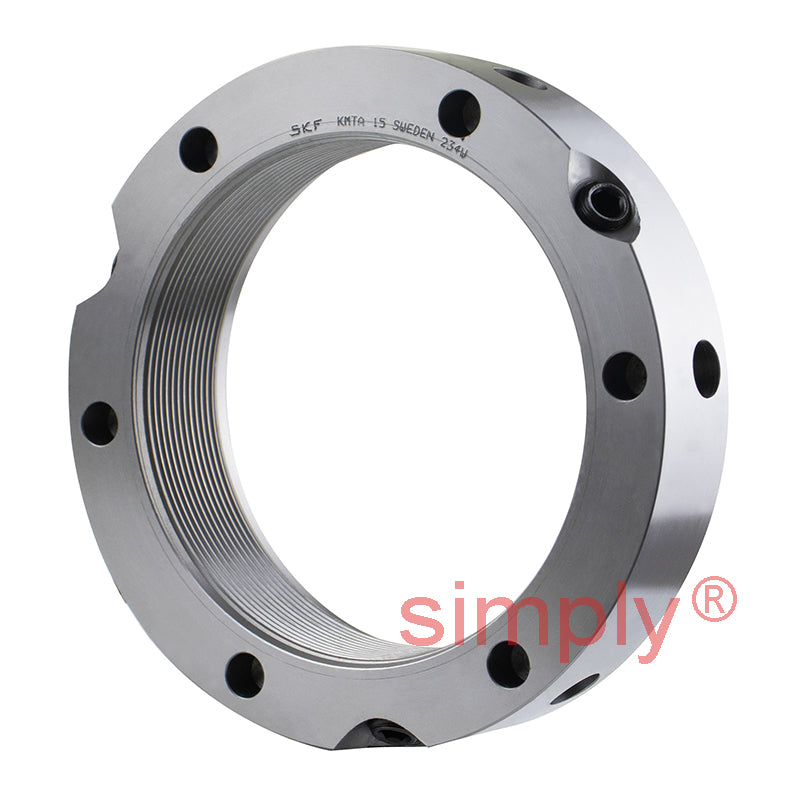

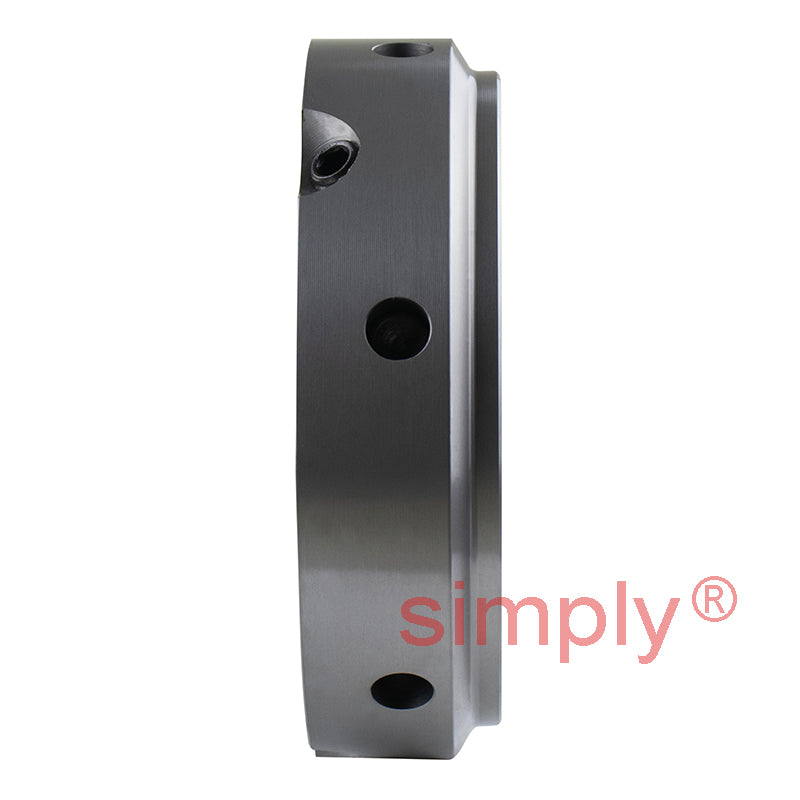

• SKF KMTA15 Precision Locking Nut with Locking Pins M75x1.5mm
  • SKF KMTA15 Precision Locking Nut with Locking Pins M75x1.5mm
  • SKF KMTA15 Precision Locking Nut with Locking Pins M75x1.5mm
1 3

SKU: KMTA15-SKF

SKF KMTA15 Precision Locking Nut with Locking Pins M75x1.5mm

SKF KMTA15 Precision Locking Nut with Locking Pins M75x1.5mm
$208.80 ex VAT
$208.80 ex VAT
Sale Sold out

In stock

Price Break
10+ $139.86
19+ $132.01
29+ $130.43
39+ $128.86
49+ $127.29
74+ $125.72
99+ $117.86
199+ $116.29
249+ $114.72
499+ $113.15
999+ $110.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M75x1.5
Technical
G M75x1.5
d2 100mm
d3 91mm
d4 77mm
B 26mm
J1 88mm
J2 13mm
N1 6.4mm
N2 8mm
Axial load capacity 520 kN
Loosening torque 305 Nm
Weight 0.66 kg
Spanner B95-100
Grub Screw M8
Screw torque 18 Nm
Name KMTA15
