SKU: KMTA16-SKF

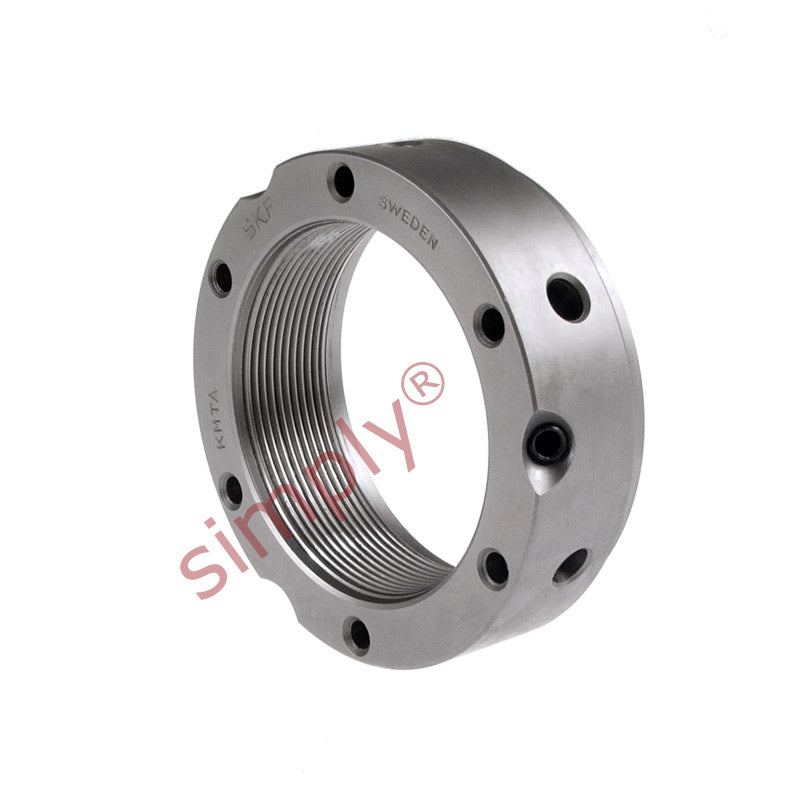

SKF KMTA16 Precision Locking Nut with Locking Pins M80x2mm

Name: SKF KMTA16 Precision Locking Nut with Locking Pins M80x2mm
Brand: SKF
SKU: KMTA16-SKF
Price: 229.45 USD
Availability: InStock

$229.45 ex VAT

Sale Sold out

In stock

Price Break

10+ $153.69

19+ $145.06

29+ $143.33

39+ $141.60

49+ $139.88

74+ $138.15

99+ $129.52

199+ $127.79

249+ $126.06

499+ $124.34

999+ $120.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: SKF - High Quality
Thread Size:: M80x2

Technical

G	M80x2
d2	110mm
d3	97mm
d4	83mm
B	30mm
J1	95mm
J2	16mm
N1	6.4mm
N2	8mm
Axial load capacity	620 kN
Loosening torque	325 Nm
Weight	1 kg
Spanner	B110-115
Grub Screw	M8
Screw torque	18 Nm
Name	KMTA16
