• SKF KMTA18 Precision Locking Nut with Locking Pins M90x2mm
  • SKF KMTA18 Precision Locking Nut with Locking Pins M90x2mm
  • SKF KMTA18 Precision Locking Nut with Locking Pins M90x2mm
1 3

SKU: KMTA18-SKF

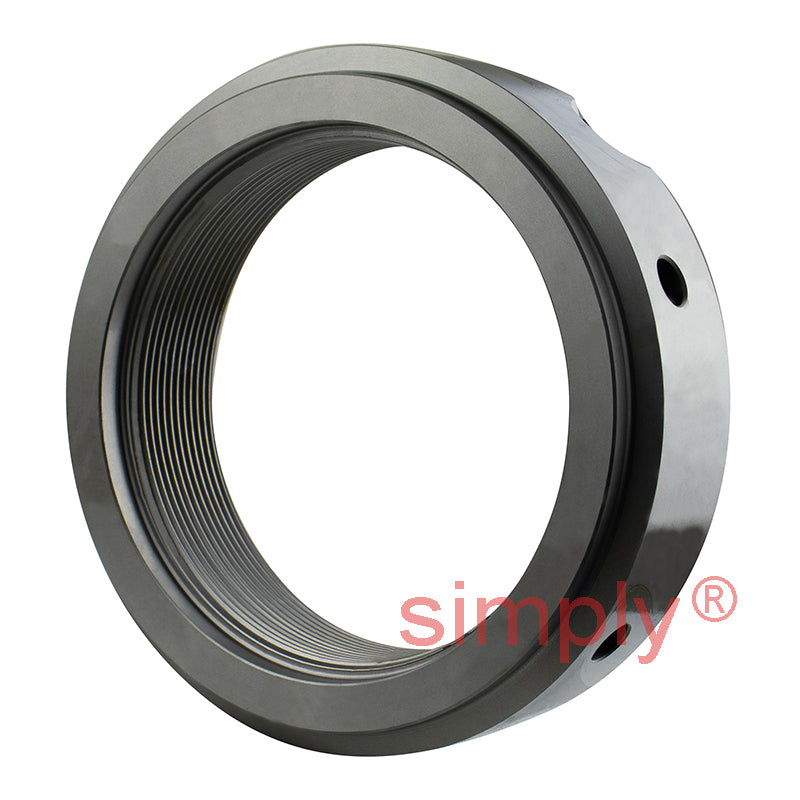

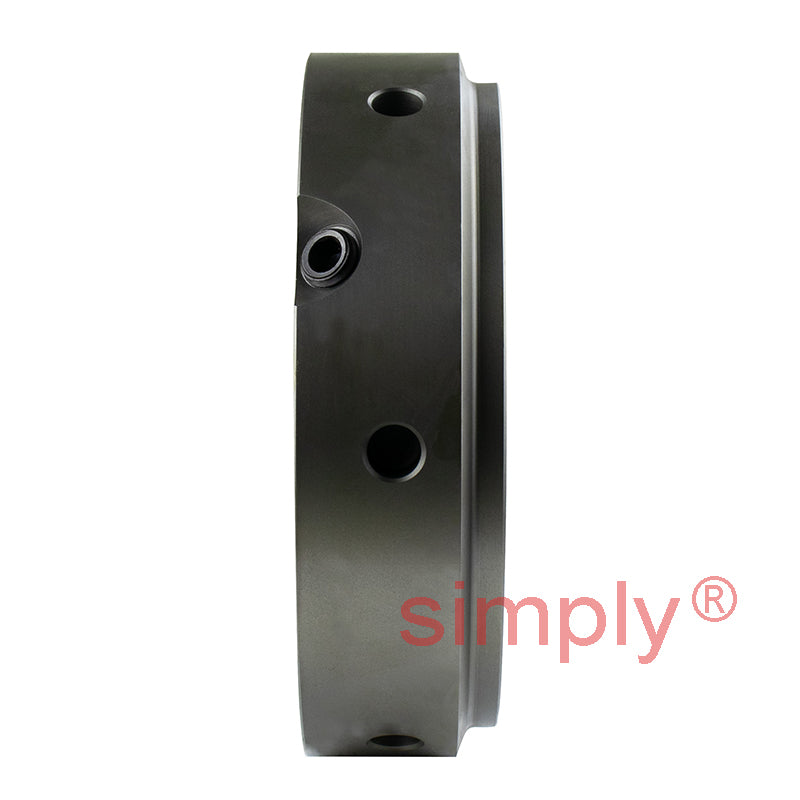

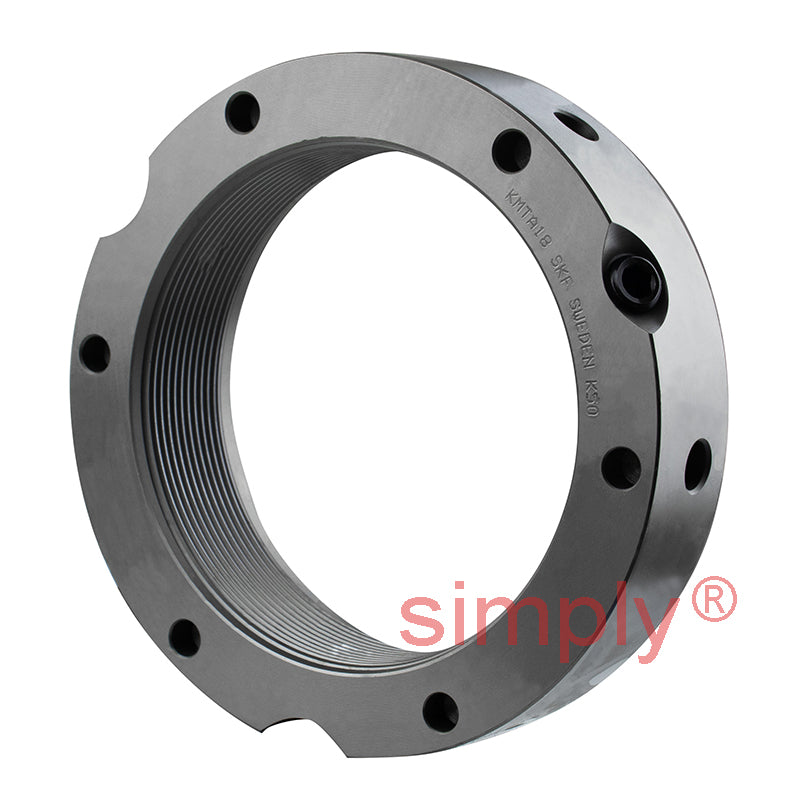

SKF KMTA18 Precision Locking Nut with Locking Pins M90x2mm

SKF KMTA18 Precision Locking Nut with Locking Pins M90x2mm
$262.27 ex VAT
$262.27 ex VAT
Sale Sold out

In stock

Price Break
10+ $175.68
19+ $165.81
29+ $163.83
39+ $161.86
49+ $159.89
74+ $157.91
99+ $148.04
199+ $146.07
249+ $144.10
499+ $142.12
999+ $138.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M90x2
Technical
G M90x2
d2 120mm
d3 110mm
d4 93mm
B 32mm
J1 108mm
J2 17mm
N1 6.4mm
N2 8mm
Axial load capacity 680 kN
Loosening torque 720 Nm
Weight 1.2 kg
Spanner B120-130
Grub Screw M10
Screw torque 35 Nm
Name KMTA18
