SKU: KMTA32-SKF

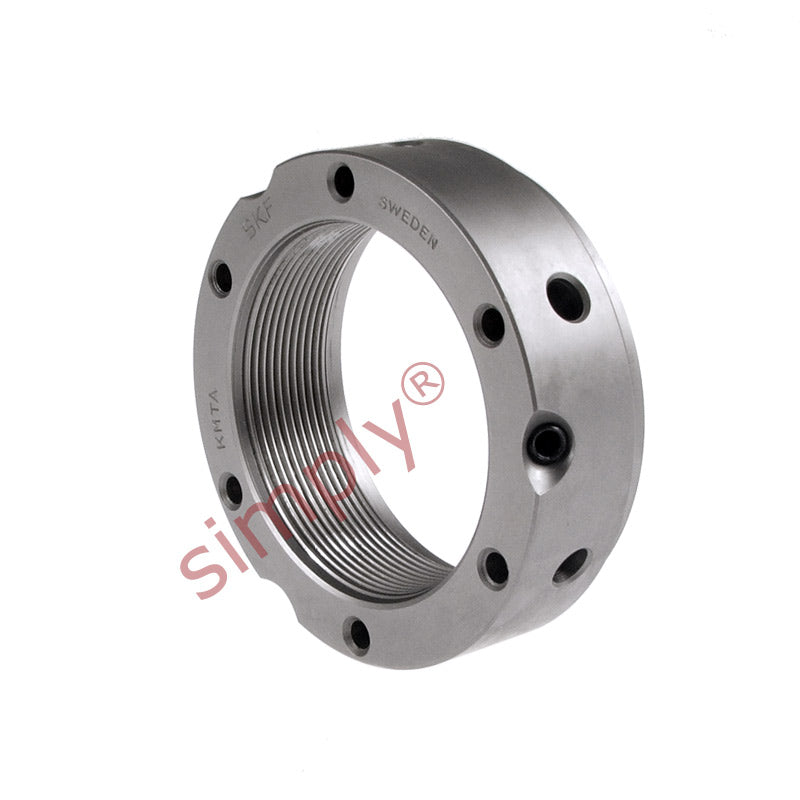

SKF KMTA32 Precision Locking Nut with Locking Pins M160x3mm

Name: SKF KMTA32 Precision Locking Nut with Locking Pins M160x3mm
Brand: SKF
SKU: KMTA32-SKF
Price: 706.02 USD
Availability: InStock

$706.02 ex VAT

Sale Sold out

In stock

Price Break

10+ $472.91

19+ $446.34

29+ $441.03

39+ $435.72

49+ $430.40

74+ $425.09

99+ $398.52

199+ $393.21

249+ $387.89

499+ $382.58

999+ $371.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: SKF - High Quality
Thread Size:: M160x3

Technical

G	M160x3
d2	205mm
d3	190mm
d4	162mm
B	32mm
J1	185mm
J2	17mm
N1	8.4mm
N2	10mm
Axial load capacity	1100 kN
Loosening torque	1600 Nm
Weight	3.15 kg
Spanner	B205-220
Grub Screw	M10
Screw torque	35 Nm
Name	KMTA32
