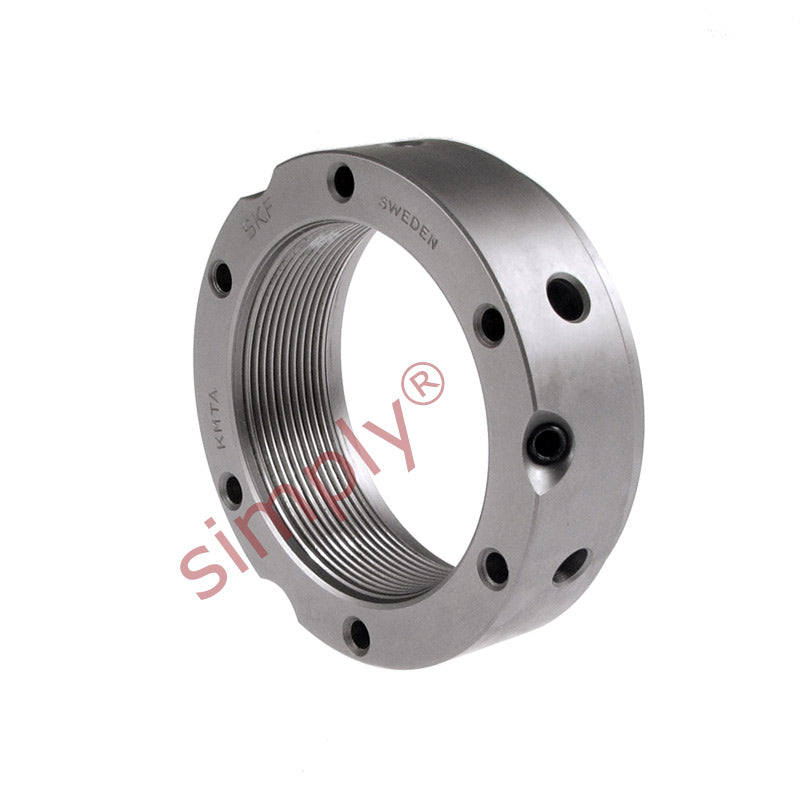

SKF KMTA34 Precision Locking Nut with Locking Pins M170x3mm
SKF KMTA34 Precision Locking Nut with Locking Pins M170x3mm
Out of stock
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M170x3
Technical
Technical
| G | M170x3 |
|---|---|
| d2 | 215mm |
| d3 | 205mm |
| d4 | 172mm |
| B | 32mm |
| J1 | 195mm |
| J2 | 17mm |
| N1 | 8.4mm |
| N2 | 10mm |
| Axial load capacity | 1160 kN |
| Loosening torque | 1750 Nm |
| Weight | 3.3 kg |
| Spanner | B205-220 |
| Grub Screw | M10 |
| Screw torque | 35 Nm |
| Name | KMTA34 |
