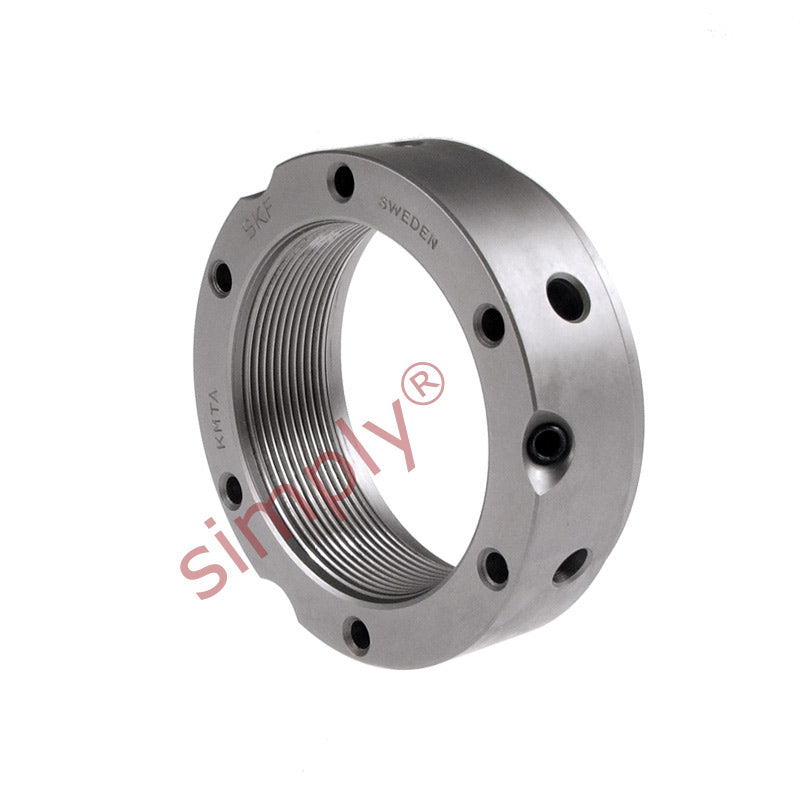

• SKF KMTA5 Precision Locking Nut with Locking Pins M25x1.5mm
1 1

SKU: KMTA5-SKF

SKF KMTA5 Precision Locking Nut with Locking Pins M25x1.5mm

SKF KMTA5 Precision Locking Nut with Locking Pins M25x1.5mm
$87.35 ex VAT
$87.35 ex VAT
Sale Sold out

In stock

Price Break
10+ $58.51
19+ $55.22
29+ $54.56
39+ $53.90
49+ $53.25
74+ $52.59
99+ $49.30
199+ $48.64
249+ $47.99
499+ $47.33
999+ $46.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M25x1.5
Technical
G M25x1.5
d2 42mm
d3 35mm
d4 26mm
B 20mm
J1 32.5mm
J2 11mm
N1 4.3mm
N2 4mm
Axial load capacity 130 kN
Loosening torque 45 Nm
Weight 0.13 kg
Spanner B40-42
Grub Screw M6
Screw torque 8 Nm
Name KMTA5
