SKU: KMTA7-SKF

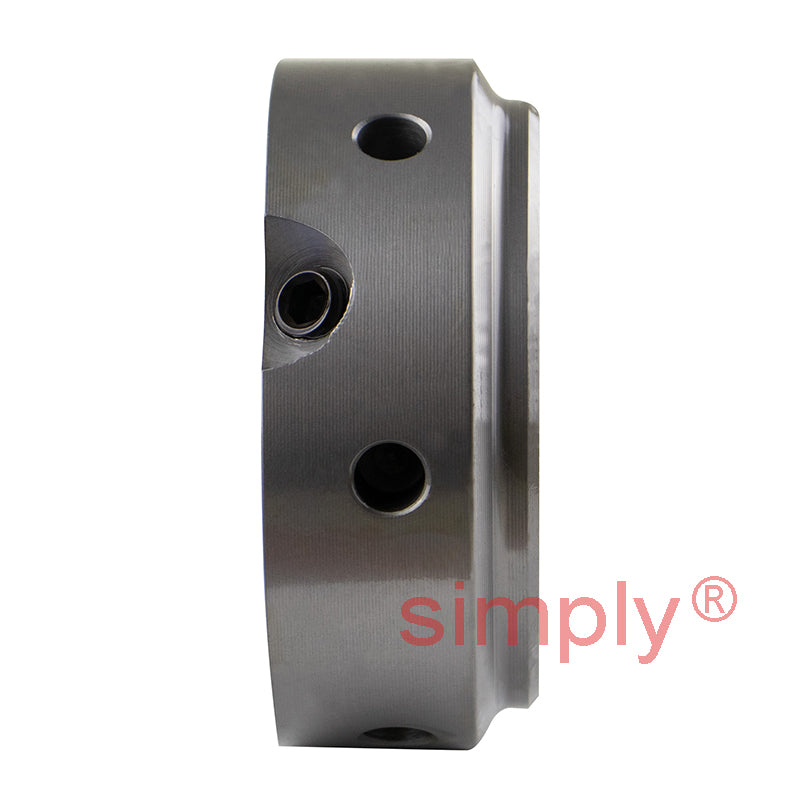

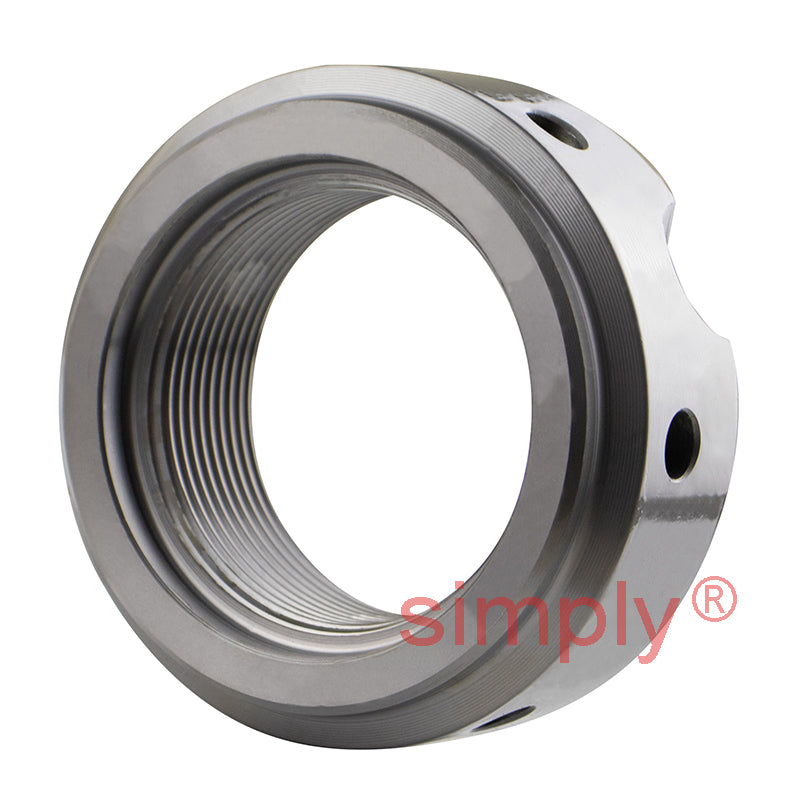

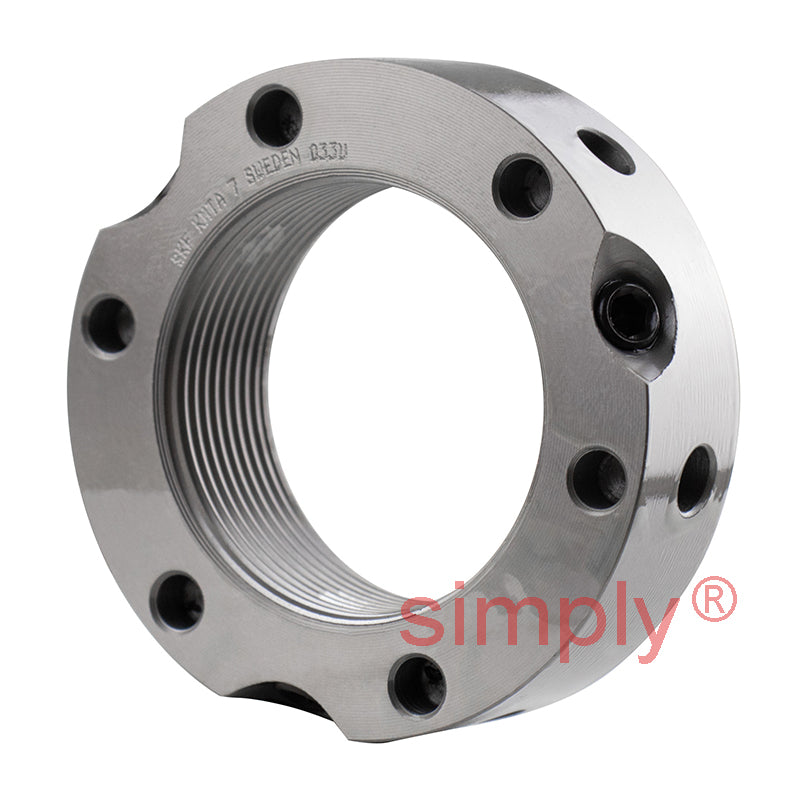

SKF KMTA7 Precision Locking Nut with Locking Pins M35x1.5mm

SKF KMTA7 Precision Locking Nut with Locking Pins M35x1.5mm
$100.65 ex VAT
$100.65 ex VAT
Sale Sold out

In stock

Price Break
10+ $67.42
19+ $63.63
29+ $62.87
39+ $62.12
49+ $61.36
74+ $60.60
99+ $56.81
199+ $56.06
249+ $55.30
499+ $54.54
999+ $53.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M35x1.5
Technical
G M35x1.5
d2 53mm
d3 47mm
d4 38mm
B 20mm
J1 45.5mm
J2 11mm
N1 4.3mm
N2 5mm
Axial load capacity 190 kN
Loosening torque 65 Nm
Weight 0.19 kg
Spanner B52-55
Grub Screw M6
Screw torque 8 Nm
Name KMTA7
