SKU: KMTA8-SKF

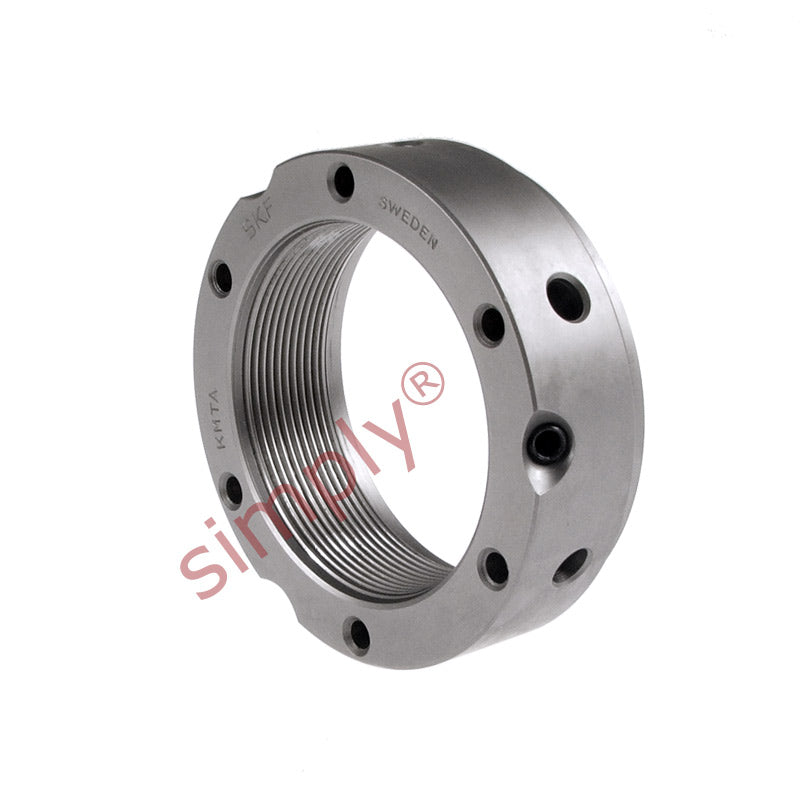

SKF KMTA8 Precision Locking Nut with Locking Pins M40x1.5mm

Name: SKF KMTA8 Precision Locking Nut with Locking Pins M40x1.5mm
Brand: SKF
SKU: KMTA8-SKF
Price: 106.92 USD
Availability: InStock

$106.92 ex VAT

Sale Sold out

In stock

Price Break

10+ $71.62

19+ $67.60

29+ $66.79

39+ $65.99

49+ $65.18

74+ $64.38

99+ $60.35

199+ $59.55

249+ $58.74

499+ $57.94

999+ $56.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: SKF - High Quality
Thread Size:: M40x1.5

Technical

G	M40x1.5
d2	58mm
d3	52mm
d4	42mm
B	22mm
J1	50.5mm
J2	12mm
N1	4.3mm
N2	5mm
Axial load capacity	210 kN
Loosening torque	80 Nm
Weight	0.23 kg
Spanner	B58-62
Grub Screw	M6
Screw torque	8 Nm
Name	KMTA8
