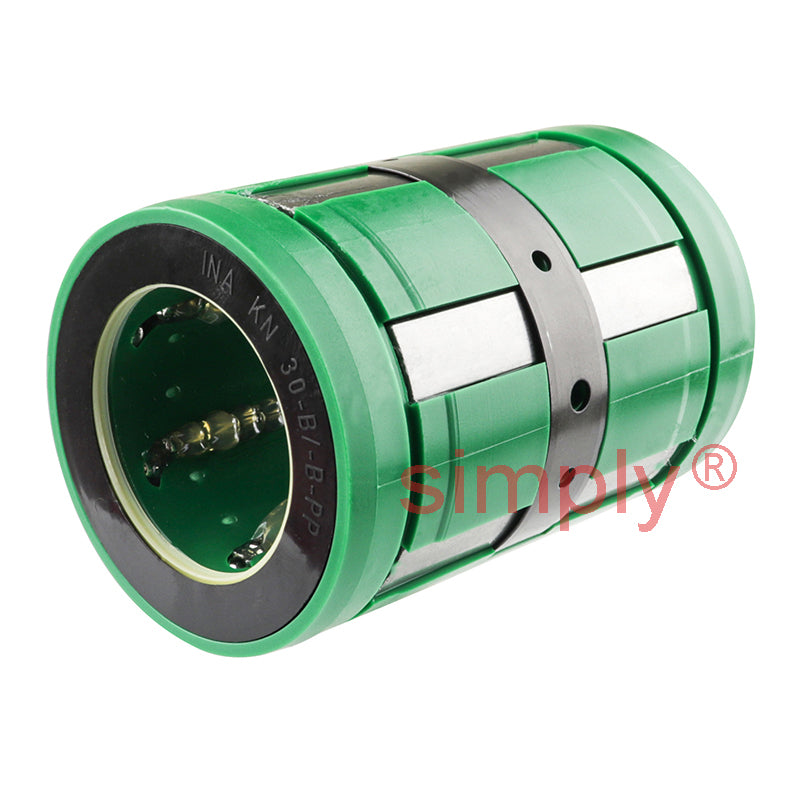

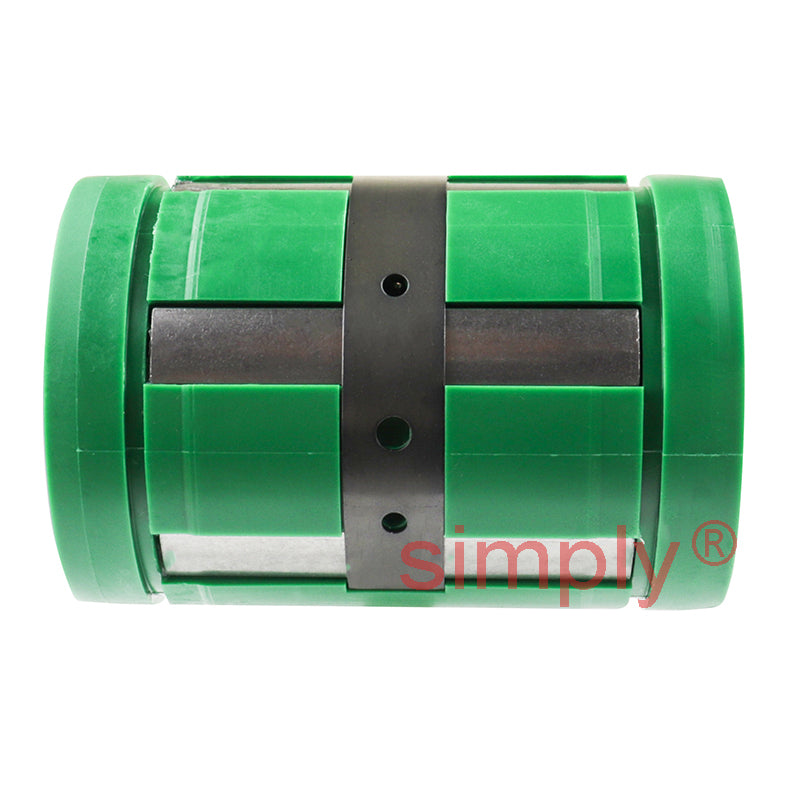

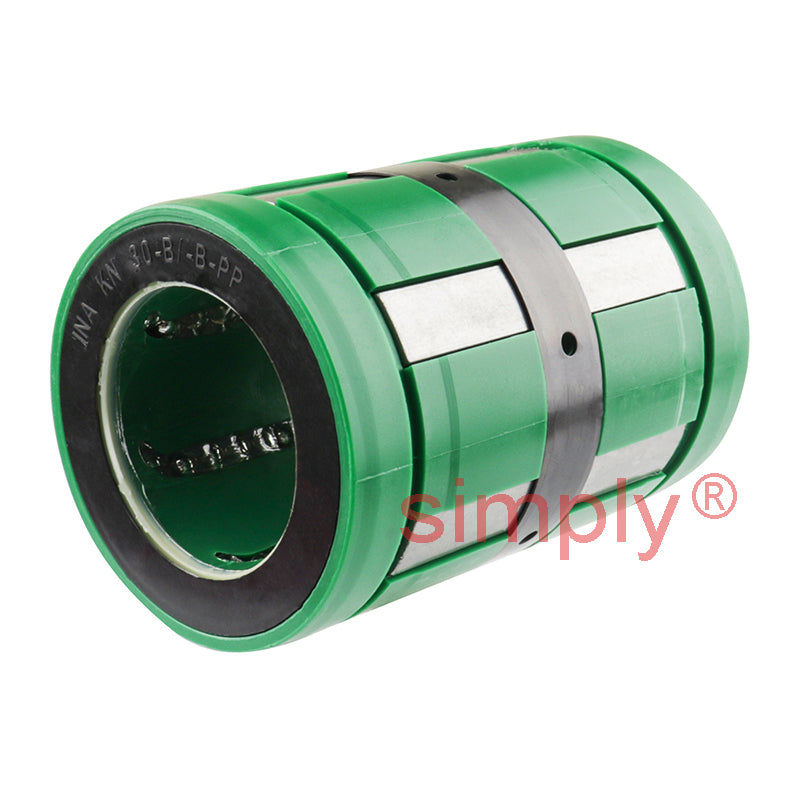

• INA KN30BPP Relubricatable Open Linear Ball Bushing with Contact Seals 30x47x68mm
  • INA
1 2

SKU: KN30-B-PP-INA

INA KN30BPP Relubricatable Open Linear Ball Bushing with Contact Seals 30x47x68mm

INA KN30BPP Relubricatable Open Linear Ball Bushing with Contact Seals 30x47x68mm
$107.46 ex VAT
$107.46 ex VAT
Sale Sold out

In stock

Price Break
3+ $71.98
5+ $67.94
10+ $67.13
15+ $66.32
20+ $65.51
30+ $64.70
40+ $60.66
50+ $59.85
60+ $59.04
75+ $58.23
100+ $56.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA KN..-B-PP Linear Ball Bearings: These light range linear ball bearings have adjustable clearance in the appropriate housing. In order to compensate misalignments arising from manufacturing tolerances, mounting errors and shaft deflection, the linear bearings of KN..-B are self-aligning up to ±30 deg. Their robust construction allows operating even under aggressive operating conditions. The bearings are maintenance-free for many applications due to the initial greasing with a high quality grease. If necessary, they can be relubricated via the radial holes arranged in the centre of the bearing. This bearing has contact seals on both sides of the bearing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Allows operating under aggressive operating conditions, maintenance-free, relubricatable.
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Outside Diameter:
47mm
Width:
68mm

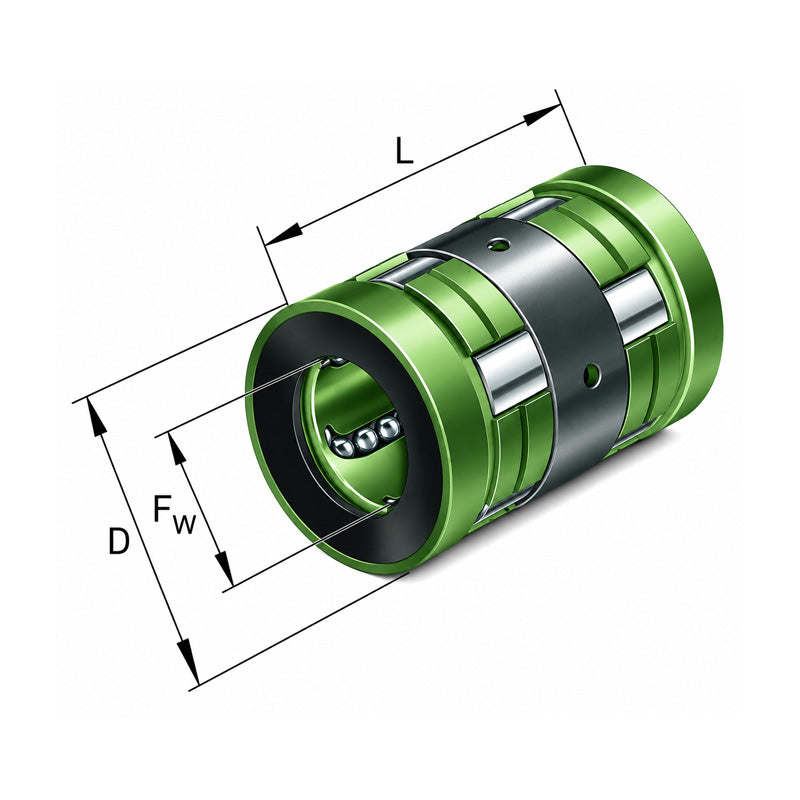

Technical
Fw 30mm
D 47mm
L 68mm
Number of rows of ball 6
BL2 1.85mm
b1 max 2.5mm
DN 44.7mm
L2 51.7mm
N4 3mm
T4 2.2mm
Mass 0.19 kg
Basic dynamic load rating C min 3750 N
Basic static load rating C0 min 2850 N
Basic dynamic load rating C max 3950 N
Basic static load rating C0 max 3650 N
Suitable retaining ring 48X1.75
