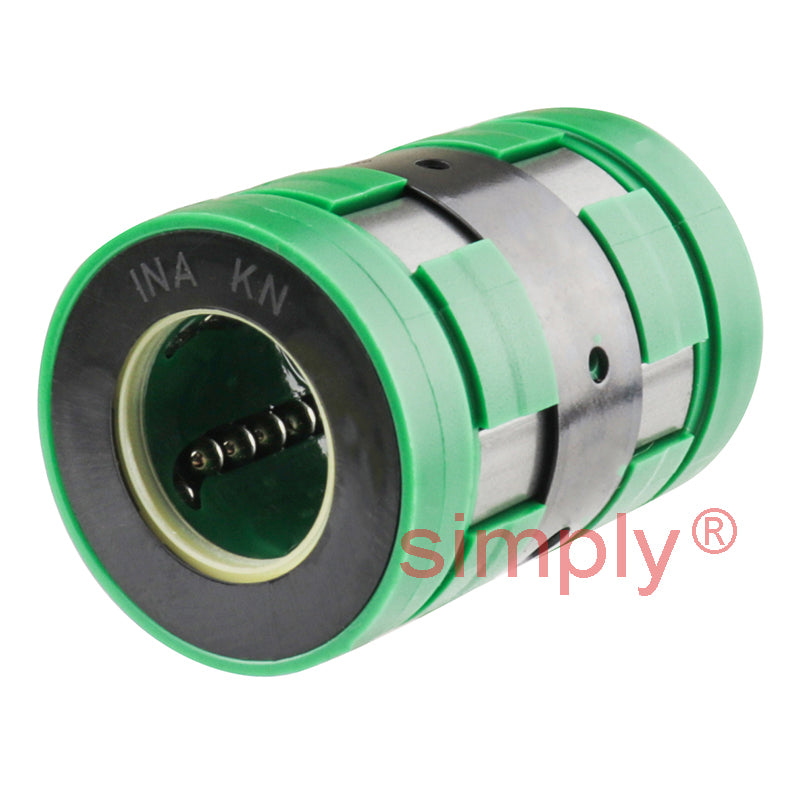

• INA KN40BPP Relubricatable Open Linear Ball Bushing with Contact Seals 40x62x80mm
  • INA
1 2

SKU: KN40-B-PP-INA

INA KN40BPP Relubricatable Open Linear Ball Bushing with Contact Seals 40x62x80mm

INA KN40BPP Relubricatable Open Linear Ball Bushing with Contact Seals 40x62x80mm
$136.43 ex VAT
$136.43 ex VAT
Sale Sold out

In stock

Price Break
3+ $91.39
5+ $86.25
10+ $85.22
15+ $84.20
20+ $83.17
30+ $82.14
40+ $77.01
50+ $75.98
60+ $74.96
75+ $73.93
100+ $71.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA KN..-B-PP Linear Ball Bearings: These light range linear ball bearings have adjustable clearance in the appropriate housing. In order to compensate misalignments arising from manufacturing tolerances, mounting errors and shaft deflection, the linear bearings of KN..-B are self-aligning up to ±30 deg. Their robust construction allows operating even under aggressive operating conditions. The bearings are maintenance-free for many applications due to the initial greasing with a high quality grease. If necessary, they can be relubricated via the radial holes arranged in the centre of the bearing. This bearing has contact seals on both sides of the bearing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Allows operating under aggressive operating conditions, maintenance-free, relubricatable.
Brand / Quality:
INA - High Quality
Inside Diameter:
40mm
Outside Diameter:
62mm
Width:
80mm

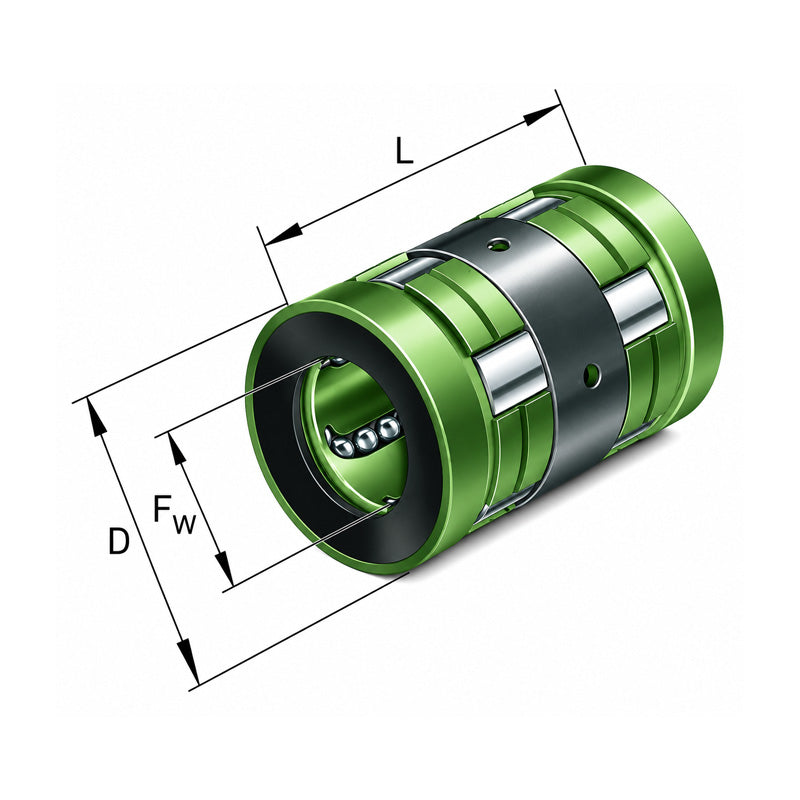

Technical
Fw 40mm
D 62mm
L 80mm
Number of rows of ball 6
BL2 2.15mm
b1 max 3mm
DN 59.4mm
L2 60.3mm
N4 3mm
T4 2.2mm
Mass 0.35 kg
Basic dynamic load rating C min 6300 N
Basic static load rating C0 min 4350 N
Basic dynamic load rating C max 6700 N
Basic static load rating C0 max 5600 N
Suitable retaining ring 63X2
