• KP003 2 Bolt Aluminium Pillow Block with 17mm Bore Grub Screw Insert
1 1

SKU: KP003

KP003 2 Bolt Aluminium Pillow Block with 17mm Bore Grub Screw Insert

KP003 2 Bolt Aluminium Pillow Block with 17mm Bore Grub Screw Insert
$17.39 ex VAT
$17.39 ex VAT
Sale Sold out

In stock

Price Break
3+ $11.65
4+ $11.00
9+ $10.86
19+ $10.73
49+ $10.60
99+ $10.47
499+ $9.82
999+ $9.69
1999+ $9.56
2999+ $9.42
4999+ $9.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

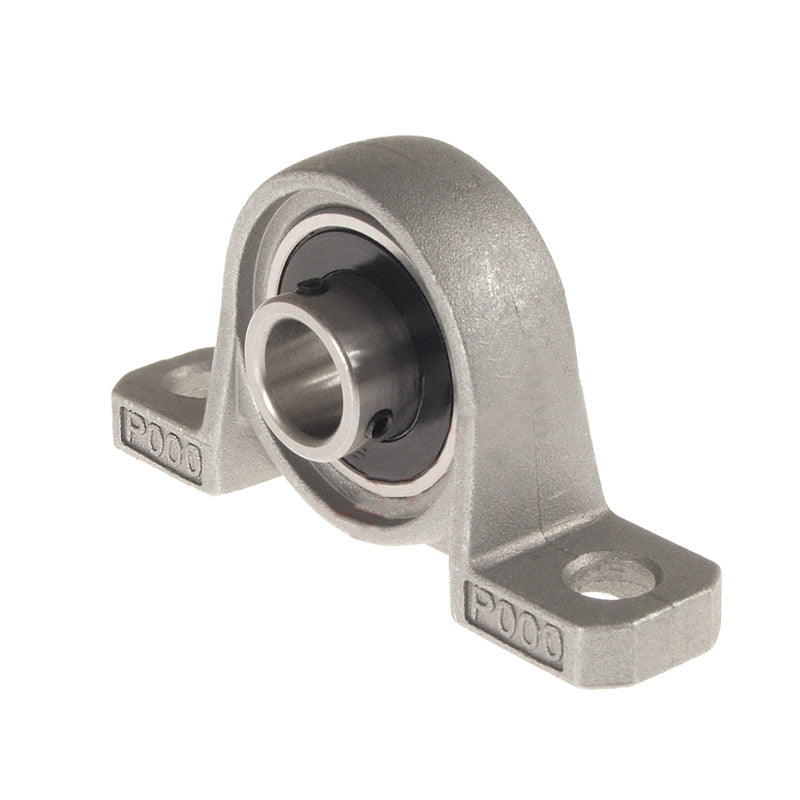

KP Series 2 Bolt Cast Aluminium Pillow Block Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has grub screws to allow locking to the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
17mm
Style:
KP
Bolt Hole Centres:
67mm
Technical
Shaft Diameter 17mm
H 24mm
L 85mm
J 67mm
A 18mm
N 7mm
H1 7mm
H2 47mm
B 17.5mm
s 5mm
Recommended Mounting Bolt M6
Weight 0.17 kg
Dynamic load 5978 N ~ 609.586 kgf
Static load 3283 N ~ 334.773 kgf
