• NTN KR16FXLL/3AS Cylindrical Cam Follower 16x11x6mm M6X1 Thread
  • NTN
1 2

SKU: KR16FXLL/3AS-NTN

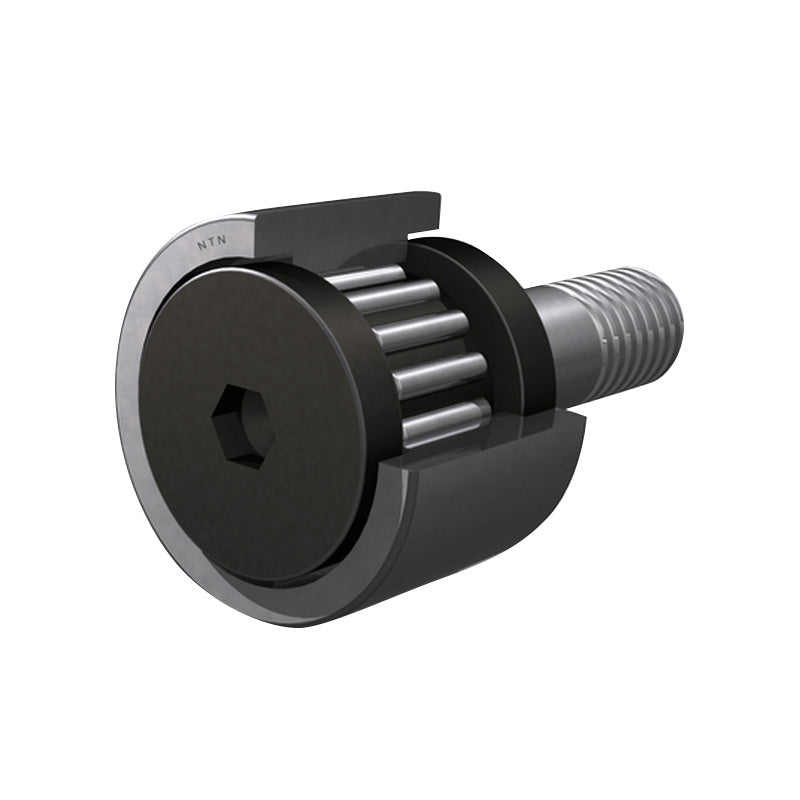

NTN KR16FXLL/3AS Cylindrical Cam Follower 16x11x6mm M6X1 Thread

NTN KR16FXLL/3AS Cylindrical Cam Follower 16x11x6mm M6X1 Thread
$35.18 ex VAT
$35.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $23.57
4+ $22.24
9+ $21.98
19+ $21.71
49+ $21.45
99+ $21.18
499+ $19.86
999+ $19.60
1999+ $19.33
2999+ $19.07
4999+ $18.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Outside Diameter:
16mm
Width:
11mm
Pitch:
M6X1
Technical
D - Outside diameter 16mm
d1 - Stud diameter 6mm
C - Outer ring width 11mm
F - Under roller diameter 8mm
B - Bearing / Inner ring width 12mm
B1 - Total stud length 28mm
B2 - Stud rod length 16mm
G - Stud thread designation M6X1
G1 - Thread length 8mm
C1 - Distance between roller and washer face 0.6mm
n - Axial lubrication hole diameter 4mm
e - Inlet diameter 12mm
Maximum tightening torque 3 n-m
Bearing with/without cage With
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 4.05 kN
C0r - Static load rating 4.2 kN
Track load capacity 3.4 kN
N - Grease lubrication limit speed 10000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
