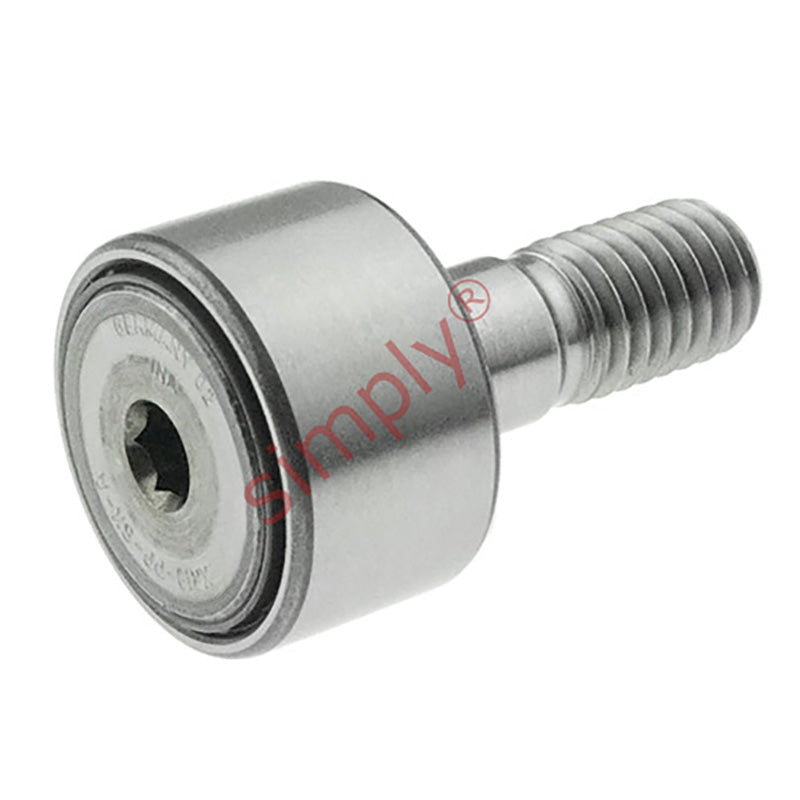

• Major Brand KR19PPSK Contact Sealed Crowned Stud Type Cam Follower 19x11x8 M8 Thread
1 1

SKU: KR19PPSK-MB

Major Brand KR19PPSK Contact Sealed Crowned Stud Type Cam Follower 19x11x8 M8 Thread

Major Brand KR19PPSK Contact Sealed Crowned Stud Type Cam Follower 19x11x8 M8 Thread
$45.68 ex VAT
$45.68 ex VAT
Sale Sold out

Equivalent to: KR19SKPPA KR19SKPP

In stock

Price Break
10+ $30.60
19+ $28.88
29+ $28.53
39+ $28.19
49+ $27.85
74+ $27.50
99+ $25.78
199+ $25.44
249+ $25.10
499+ $24.75
999+ $24.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
19mm
Width:
11mm
Pitch:
M8
Technical
D 19mm
C 11mm
d (Stud Diameter) 8mm
B 32mm
B1 20mm
C1 0.6mm
d1 15mm
G M8mm
G1 10mm
r min 0.15mm
SW 4mm
Dynamic load 3470 N
Static load 3800 N
Fatigue load limit Pu 415 N
Radial dynamic load 3800 N
Radial static load 5500 N
Speed rating 11000 rpm
Weight 29 g
