• Budget KR22 Crowned Cam Follower 22x12x10 M10x1 Thread
1 1

SKU: KR22-EU

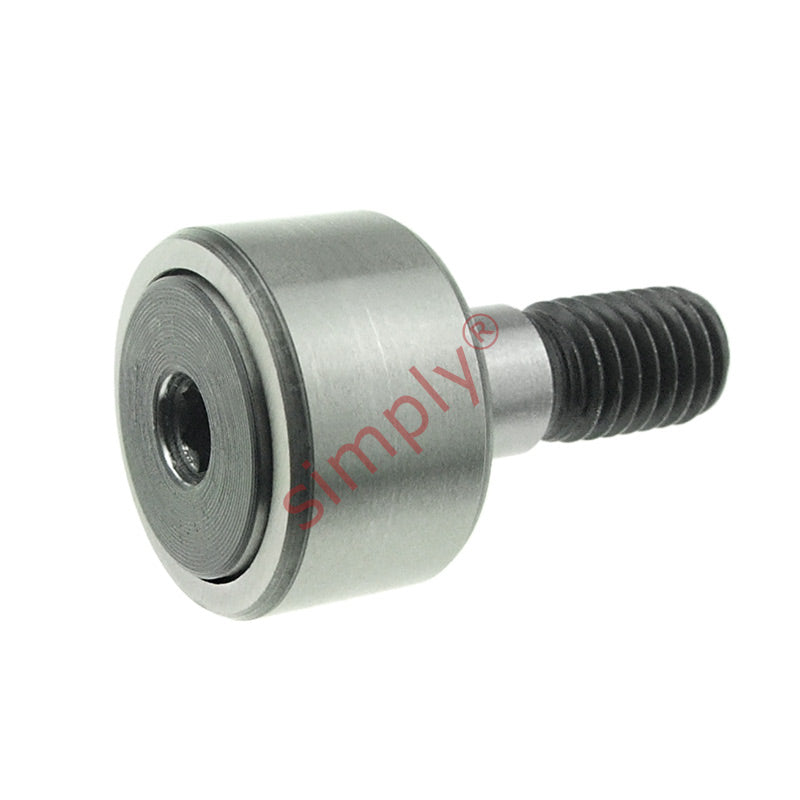

Budget KR22 Crowned Cam Follower 22x12x10 M10x1 Thread

Budget KR22 Crowned Cam Follower 22x12x10 M10x1 Thread
$28.89 ex VAT
$28.89 ex VAT
Sale Sold out

In stock

Price Break
10+ $19.35
19+ $18.26
29+ $18.05
39+ $17.83
49+ $17.61
74+ $17.39
99+ $16.31
199+ $16.09
249+ $15.87
499+ $15.65
999+ $15.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer.
Benefits: High load, shock resistant.
Brand / Quality:
EU Budget - Economy Quality
Outside Diameter:
22mm
Width:
12mm
Pitch:
M10x1
Technical
D 22mm
C 12mm
d (Stud Diameter) 10mm
B 36mm
B1 23mm
C1 0.6mm
d1 17mm
G M10x1
G1 12mm
M 4mm
r min 0.3mm
Dynamic load 4400 N
Static load 5000 N
Fatigue load limit Pu 560 N
Radial dynamic load 4250 N
Radial static load 6000 N
Speed rating 8000 rpm
Weight 44 g
