SKU: KR22PPA-IKO

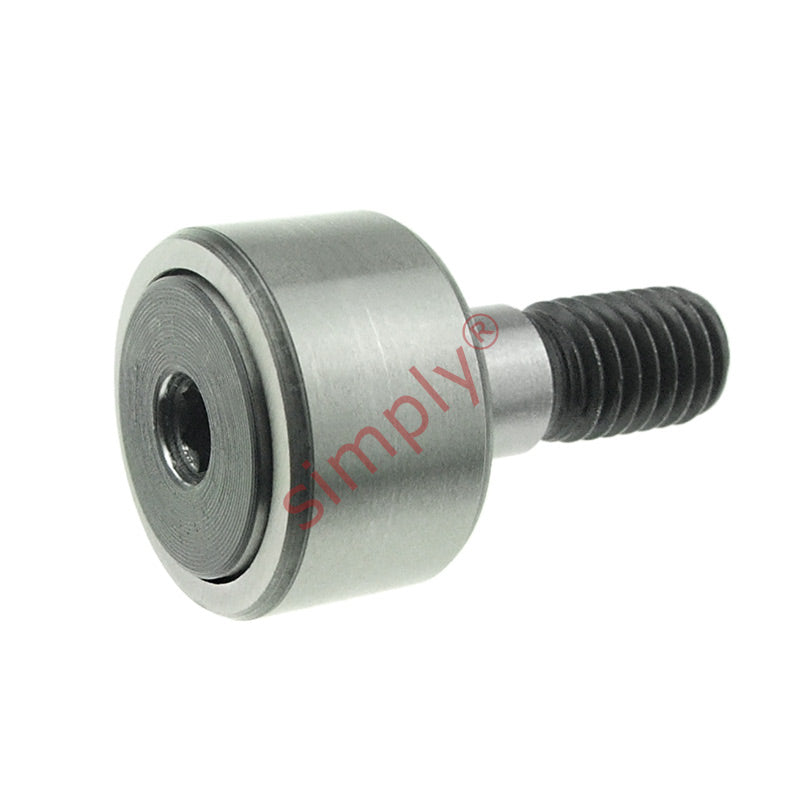

Major Brand KR22PPA Contact Sealed Crowned Cam Follower 22x12x10 M10x1.25 Thread
- Regular price
- $53.82 ex VAT
- Sale price
- $53.82
- Regular price
-
In stock
Quantity Price Breaks
10
$47.90
19
$45.21
29
$44.67
39
$44.13
49
$43.59
74
$43.06
99
$40.37
199
$39.83
249
$39.29
499
$38.75
999
$37.67
SKU:
KR22PPA-IKO
Major Brand KR22PPA Contact Sealed Crowned Cam Follower 22x12x10 M10x1.25 Thread
- Regular price
- $53.82 ex VAT
- Sale price
- $53.82
- Regular price
-
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
Technical
| D | = | 22mm |
| C | = | 12mm |
| d (Stud Diameter) | = | 10mm |
| B | = | 36mm |
| B1 | = | 23mm |
| C1 | = | 0.6mm |
| d1 | = | 17.5mm |
| G | = | M10x1.25mm |
| G1 | = | 12mm |
| r min | = | 0.3mm |
| SW | = | 5mm |
| Dynamic load | = | 4400 N |
| Static load | = | 5000 N |
| Fatigue load limit Pu | = | 560 N |
| Radial dynamic load | = | 4250 N |
| Radial static load | = | 6000 N |
| Speed rating | = | 8000 rpm |
| Weight | = | 43 g |
