SKU: KR26B-MB

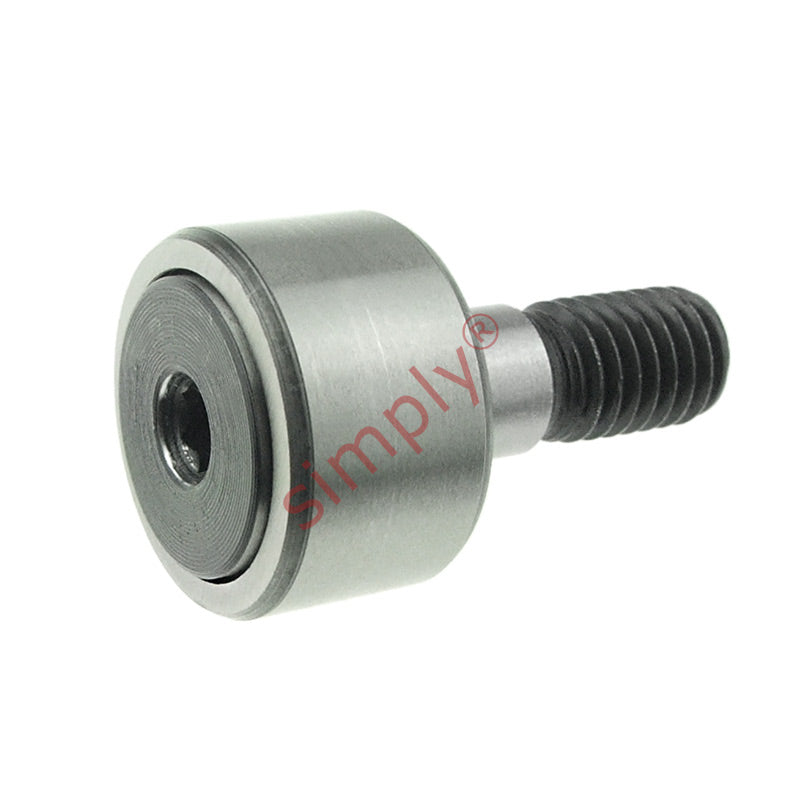

Major Brand KR26B Crowned Cam Follower 26x12x10 M10x1 Thread

Name: Major Brand KR26B Crowned Cam Follower 26x12x10 M10x1 Thread
Brand: Major Brand
SKU: KR26B-MB
Price: 46.09 USD
Availability: InStock

$46.09 ex VAT

Sale Sold out

In stock

Price Break

10+ $30.87

19+ $29.14

29+ $28.79

39+ $28.45

49+ $28.10

74+ $27.75

99+ $26.02

199+ $25.67

249+ $25.32

499+ $24.98

999+ $24.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

KR-B Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer.
Benefits: High load, shock resistant.

Brand / Quality:: Major Brand - High Quality
Outside Diameter:: 26mm
Width:: 12mm
Pitch:: M10x1

Technical

D	26mm
C	12mm
d(Stud Diameter)	10mm
B	36mm
B1	23mm
C1	0.6mm
d1	17.5mm
G	M10x1
G1	12mm
r min	0.3mm
SW	5mm
Dynamic load	4840 N
Static load	6000 N
Fatigue load limit Pu	655 N
Radial dynamic load	9300 N
Radial static load	13200 N
Speed rating	8000 rpm
Weight	59 g
