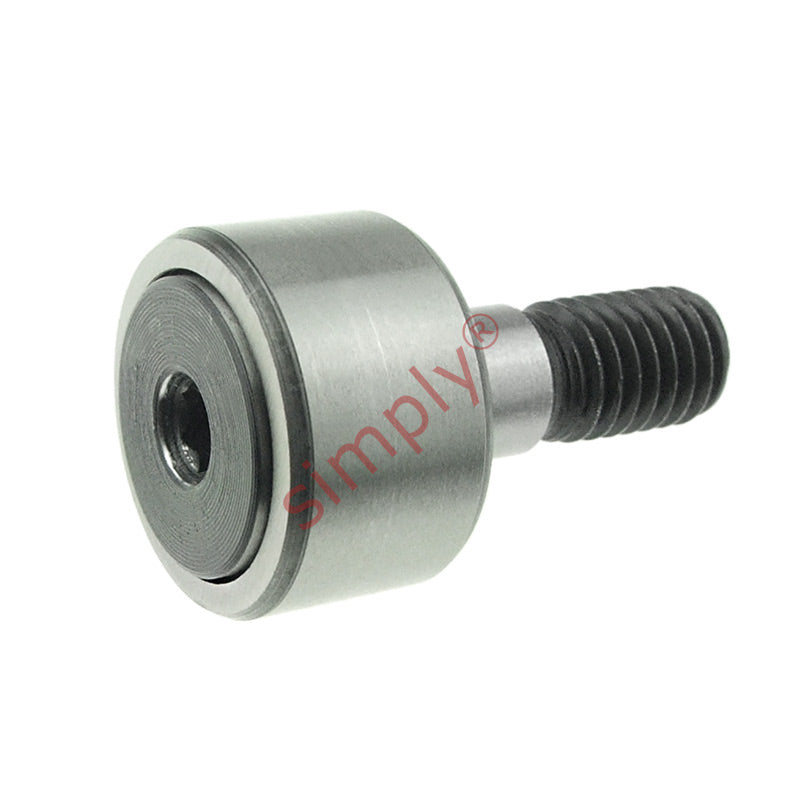

• Budget KR30B Crowned Cam Follower 30x14x12 M12x1.5 Thread
1 1

SKU: KR30B-EU

Budget KR30B Crowned Cam Follower 30x14x12 M12x1.5 Thread

Budget KR30B Crowned Cam Follower 30x14x12 M12x1.5 Thread
$33.51 ex VAT
$33.51 ex VAT
Sale Sold out

In stock

Price Break
10+ $22.44
19+ $21.18
29+ $20.93
39+ $20.68
49+ $20.43
74+ $20.18
99+ $18.91
199+ $18.66
249+ $18.41
499+ $18.16
999+ $17.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR-B Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer.
Benefits: High load, shock resistant.
Brand / Quality:
EU Budget - Economy Quality
Outside Diameter:
30mm
Width:
14mm
Pitch:
M12x1.5
Technical
D 30mm
C 14mm
d (Stud Diameter) 12mm
B 40mm
B1 25mm
B2 6mm
C1 0.6mm
d1 23mm
G M12x1.5
G1 13mm
M1 3mm
r min 0.6mm
SW 6mm
Dynamic load 6440 N
Static load 8000 N
Fatigue load limit Pu 880 N
Radial dynamic load 7800 N
Radial static load 11200 N
Speed rating 5500 rpm
Weight 92 g
