• Budget KR35PP Contact Sealed Crowned Cam Follower 35x18x16 M16x1.5 Thread
1 1

SKU: KR35PP-EU

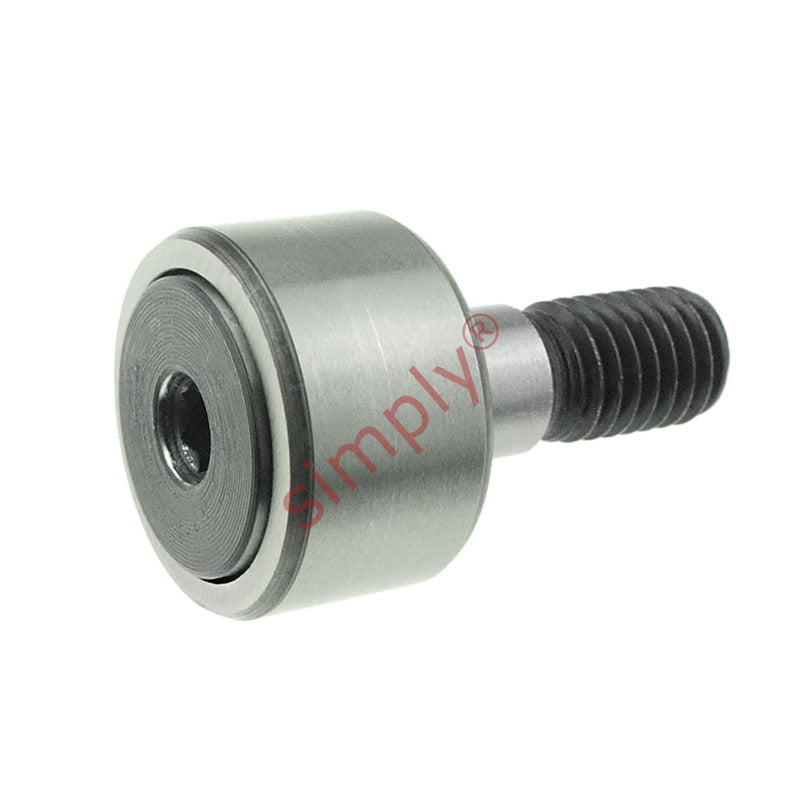

Budget KR35PP Contact Sealed Crowned Cam Follower 35x18x16 M16x1.5 Thread

Budget KR35PP Contact Sealed Crowned Cam Follower 35x18x16 M16x1.5 Thread
$46.11 ex VAT
$46.11 ex VAT
Sale Sold out

In stock

Price Break
10+ $30.88
19+ $29.15
29+ $28.80
39+ $28.45
49+ $28.11
74+ $27.76
99+ $26.03
199+ $25.68
249+ $25.33
499+ $24.98
999+ $24.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
Brand / Quality:
EU Budget - Economy Quality
Outside Diameter:
35mm
Width:
18mm
Pitch:
M16x1.5
Technical
D 35mm
C 18mm
d (Stud Diameter) 16mm
B 52mm
B1 32.5mm
B2 8mm
C1 0.8mm
d1 27mm
G M16x1.5
G1 17mm
M 6mm
M1 3mm
r min 0.6mm
Dynamic load 9520 N
Static load 13700 N
Fatigue load limit Pu 1560 N
Radial dynamic load 11400 N
Radial static load 16300 N
Speed rating 3600 rpm
Weight 170 g
