SKU: KR40PPA-INA

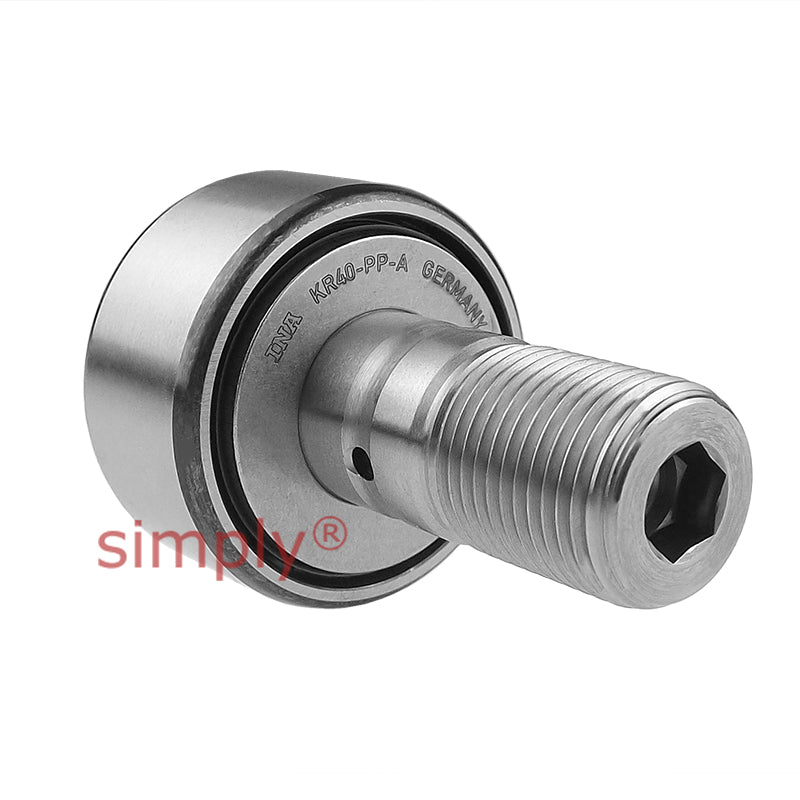

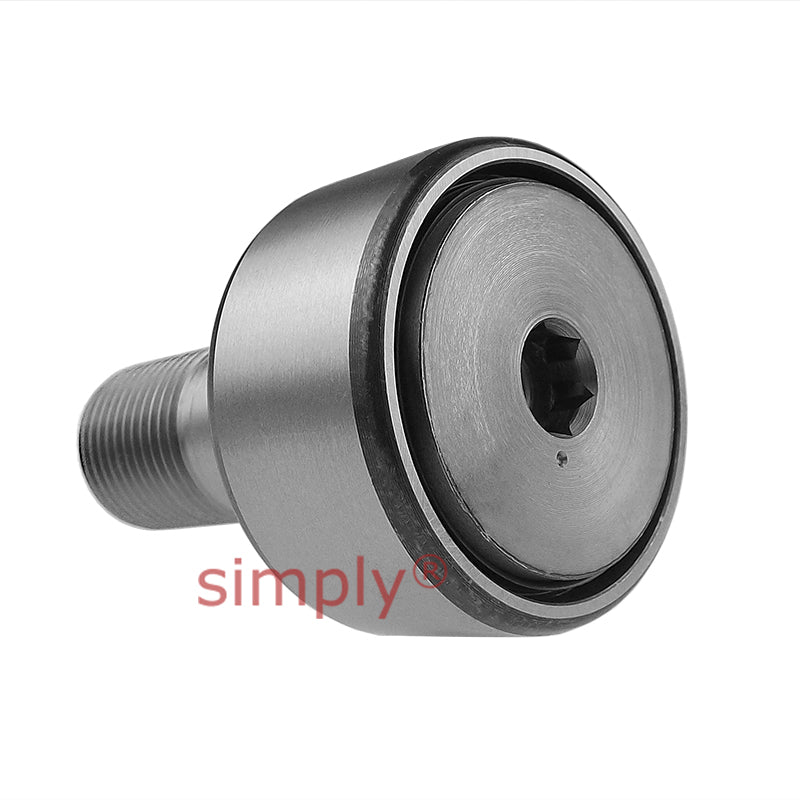

INA KR40PPA Lip Sealed Crowned Cam Follower 40x20x18mm M18x1.5 Thread
INA KR40PPA Lip Sealed Crowned Cam Follower 40x20x18mm M18x1.5 Thread
Regular price
$59.61
ex VAT
Regular price
Sale price
$59.61
ex VAT
Equivalent to: KR40PP CF18UUR MCFR-40-S
In stock
Price Break
10+
$39.93
19+
$37.68
29+
$37.23
39+
$36.79
49+
$36.34
74+
$35.89
99+
$33.65
199+
$33.20
249+
$32.75
499+
$32.30
999+
$31.40
Quantity
Couldn't load pickup availability
Share this product
Description
Description
INA Standard Type Cam Followers: These bearing have a stud incorporating needle rollers in a thick walled outer ring. These bearings are designed for outer ring rotation and have excellent rotational performance with low friction and a high load capacity. These bearings are suitable for machine tools, industrial robots, electronic devices etc. as these bearings have high rigidity and high accuracy.
Benefits: Corrosion-resistant
- Brand / Quality:
- INA - High Quality
- Outside Diameter:
- 20mm
- Width:
- 18mm
- Pitch:
- M18x1.5
Technical
Technical
| d1 (Stud Diameter) | 40mm |
|---|---|
| D | 18mm |
| G | M18x1.5mm |
| C | 20mm |
| Max.B | 21.6mm |
| Max.B1 | 58.1mm |
| Weight | 250g |
| Dynamic Load | 14800N |
| Static Load | 25200N |
