• Budget KR52PPA Contact Sealed Crowned Cam Follower 52x24x20 M20x1.5 Thread
1 1

SKU: KR52PPA-EU

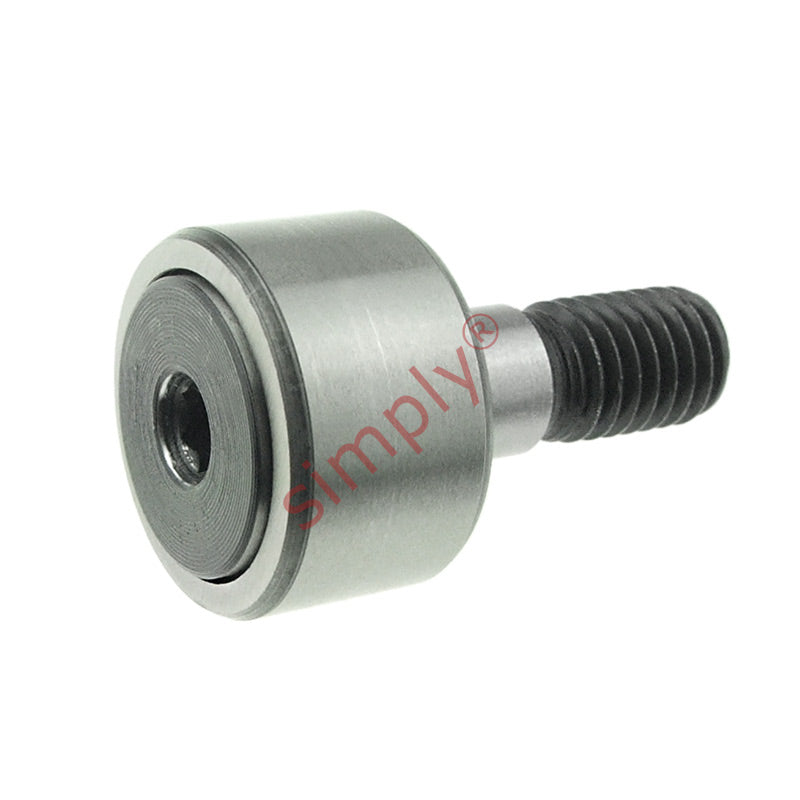

Budget KR52PPA Contact Sealed Crowned Cam Follower 52x24x20 M20x1.5 Thread

Budget KR52PPA Contact Sealed Crowned Cam Follower 52x24x20 M20x1.5 Thread
$76.43 ex VAT
$76.43 ex VAT
Sale Sold out

In stock

Price Break
10+ $51.19
19+ $48.32
29+ $47.74
39+ $47.17
49+ $46.59
74+ $46.02
99+ $43.14
199+ $42.57
249+ $41.99
499+ $41.42
999+ $40.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
Brand / Quality:
EU Budget - Economy Quality
Outside Diameter:
52mm
Width:
24mm
Pitch:
M20x1.5
Technical
D 52mm
C 24mm
d (Stud Diameter) 20mm
B 66mm
B1 40.5mm
B2 9mm
C1 0.8mm
d1 36.5mm
G M20x1.5
G1 21mm
M1 4mm
r min 1mm
SW 10mm
Dynamic load 15700 N
Static load 27000 N
Fatigue load limit Pu 3200 N
Radial dynamic load 36000 N
Radial static load 51000 N
Speed rating 2400 rpm
Weight 450 g
