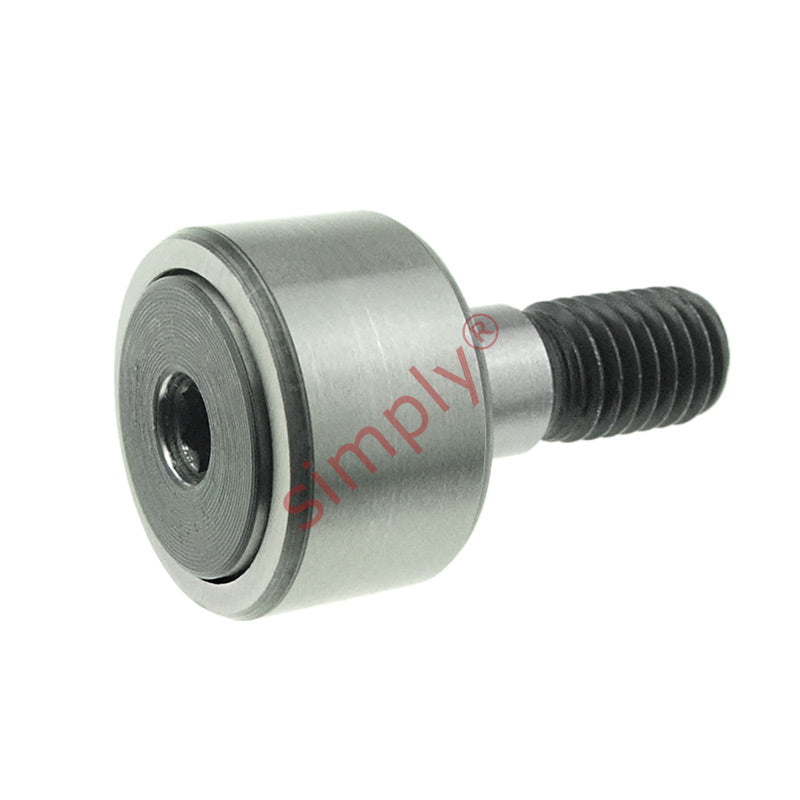

• Major Brand KR62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread
1 1

SKU: KR62PPA-MB

Major Brand KR62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread

Major Brand KR62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread
$132.13 ex VAT
$132.13 ex VAT
Sale Sold out

In stock

Price Break
10+ $88.50
19+ $83.53
29+ $82.54
39+ $81.54
49+ $80.55
74+ $79.55
99+ $74.58
199+ $73.59
249+ $72.59
499+ $71.60
999+ $69.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
62mm
Width:
29mm
Pitch:
M24x1.5
Technical
D 62mm
C 29mm
d(Stud Diameter) 24mm
B 80mm
B1 49.5mm
B2 11mm
C1 0.8mm
d1 44mm
G M24x1.5
G1 25mm
M1 4mm
r min 1mm
SW 14mm
Dynamic load 24600 N
Static load 44000 N
Fatigue load limit Pu 5500 N
Radial dynamic load 58500 N
Radial static load 85000 N
Speed rating 1900 rpm
Weight 770 g
