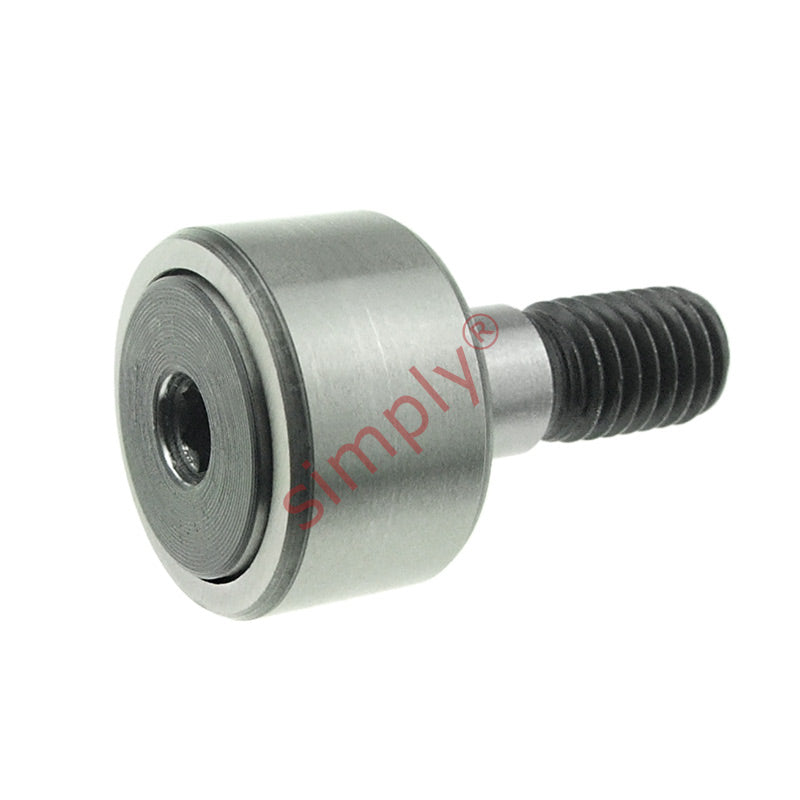

Major Brand KRE30PP Contact Sealed Crowned Cam Follower with Eccentric Stud 30x14x15 M12x1.5 Thread
Major Brand KRE30PP Contact Sealed Crowned Cam Follower with Eccentric Stud 30x14x15 M12x1.5 Thread
Regular price
$57.64
ex VAT
Regular price
Sale price
$57.64
ex VAT
In stock
Price Break
10+
$38.60
19+
$36.44
29+
$36.00
39+
$35.57
49+
$35.13
74+
$34.70
99+
$32.53
199+
$32.10
249+
$31.66
499+
$31.23
999+
$30.36
Quantity
Couldn't load pickup availability
Share this product
Description
Description
KRE-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on-side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 30mm
- Width:
- 14mm
- Pitch:
- M12x1.5
Technical
Technical
| D | 30mm |
|---|---|
| C | 14mm |
| d(Stud Diameter) | 15mm |
| B | 40mm |
| B1 | 25mm |
| C1 | 0.6mm |
| d1 | 23mm |
| G | M12x1.5 |
| G1 | 13mm |
| M | 6mm |
| r min | 0.6mm |
| Eccentric stud c | 0.5mm |
| B3 | 11mm |
| Dynamic load | 6440 N |
| Static load | 8000 N |
| Fatigue load limit Pu | 880 N |
| Radial dynamic load | 7800 N |
| Radial static load | 11200 N |
| Speed rating | 5500 rpm |
| Weight | 93 g |
