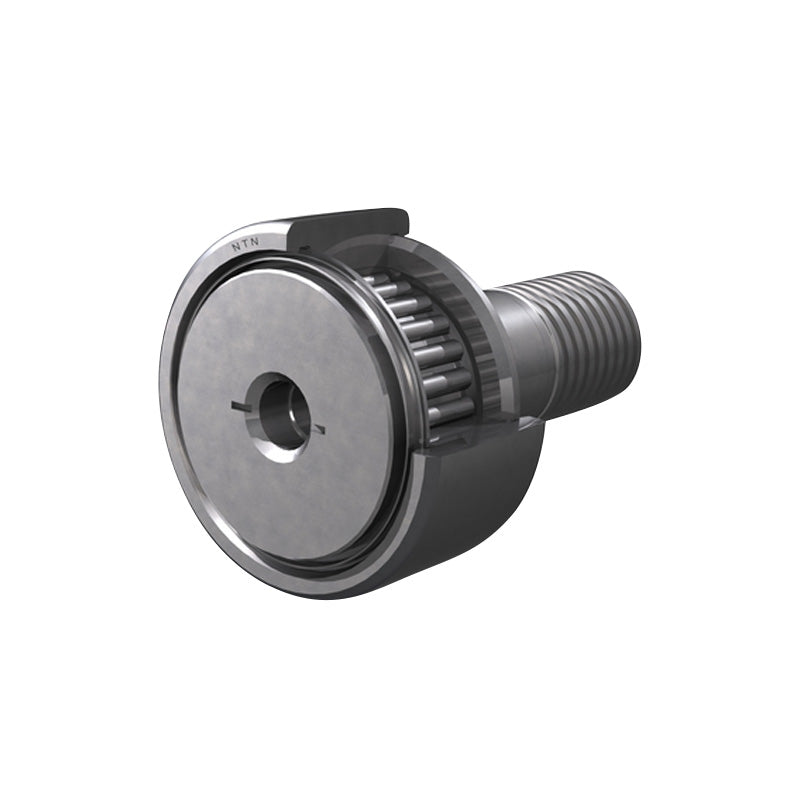

• NTN KRV16FLLD0H/L588 Hex Head Crowned Cam Follower 16x11x6mm M6X1 Thread
  • NTN
1 2

SKU: KRV16FLLD0H/L588-NTN

NTN KRV16FLLD0H/L588 Hex Head Crowned Cam Follower 16x11x6mm M6X1 Thread

NTN KRV16FLLD0H/L588 Hex Head Crowned Cam Follower 16x11x6mm M6X1 Thread
$32.25 ex VAT
$32.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $21.60
4+ $20.39
9+ $20.14
19+ $19.90
49+ $19.66
99+ $19.42
499+ $18.20
999+ $17.96
1999+ $17.72
2999+ $17.47
4999+ $16.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Outside Diameter:
16mm
Width:
11mm
Pitch:
M6X1
Technical
D - Outside diameter 16mm
d1 - Stud diameter 6mm
C - Outer ring width 11mm
F - Under roller diameter 8mm
B - Bearing / Inner ring width 12mm
B1 - Total stud length 28mm
B2 - Stud rod length 16mm
G - Stud thread designation M6X1
G1 - Thread length 8mm
C1 - Distance between roller and washer face 0.6mm
e - Inlet diameter 12mm
h - Hexagonal hole diameter 3mm
R - Track roller radius 500mm
Maximum tightening torque 3 n-m
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 6.5 kN
C0r - Static load rating 9.35 kN
Track load capacity 1.08 kN
N - Grease lubrication limit speed 10000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
