• NTN KRV19FLLD0H/L588 Hex Head Crowned Cam Follower 19x11x8mm M8X1.25 Thread
  • NTN
1 2

SKU: KRV19FLLD0H/L588-NTN

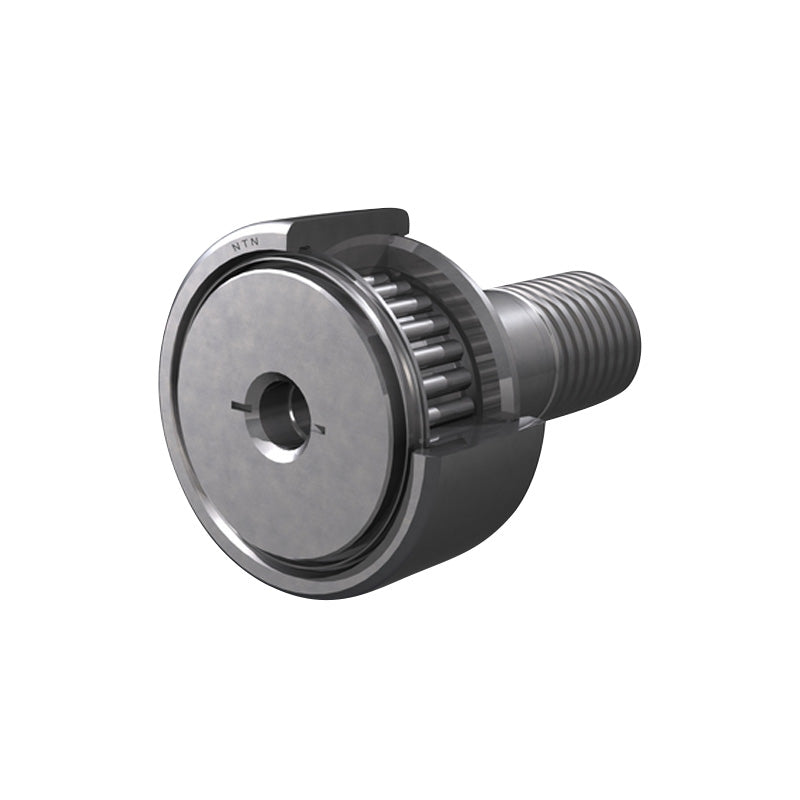

NTN KRV19FLLD0H/L588 Hex Head Crowned Cam Follower 19x11x8mm M8X1.25 Thread

NTN KRV19FLLD0H/L588 Hex Head Crowned Cam Follower 19x11x8mm M8X1.25 Thread
$32.25 ex VAT
$32.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $21.60
4+ $20.39
9+ $20.14
19+ $19.90
49+ $19.66
99+ $19.42
499+ $18.20
999+ $17.96
1999+ $17.72
2999+ $17.47
4999+ $16.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Outside Diameter:
19mm
Width:
11mm
Pitch:
M8X1.25
Technical
D - Outside diameter 19mm
d1 - Stud diameter 8mm
C - Outer ring width 11mm
F - Under roller diameter 10mm
B - Bearing / Inner ring width 12mm
B1 - Total stud length 32mm
B2 - Stud rod length 20mm
G - Stud thread designation M8X1.25
G1 - Thread length 10mm
C1 - Distance between roller and washer face 0.6mm
e - Inlet diameter 14mm
R - Track roller radius 500mm
Maximum tightening torque 8 n-m
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 7.45 kN
C0r - Static load rating 11.7 kN
Track load capacity 1.38 kN
N - Grease lubrication limit speed 10000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
