SKU: KRV19FXLL/3AS-NTN

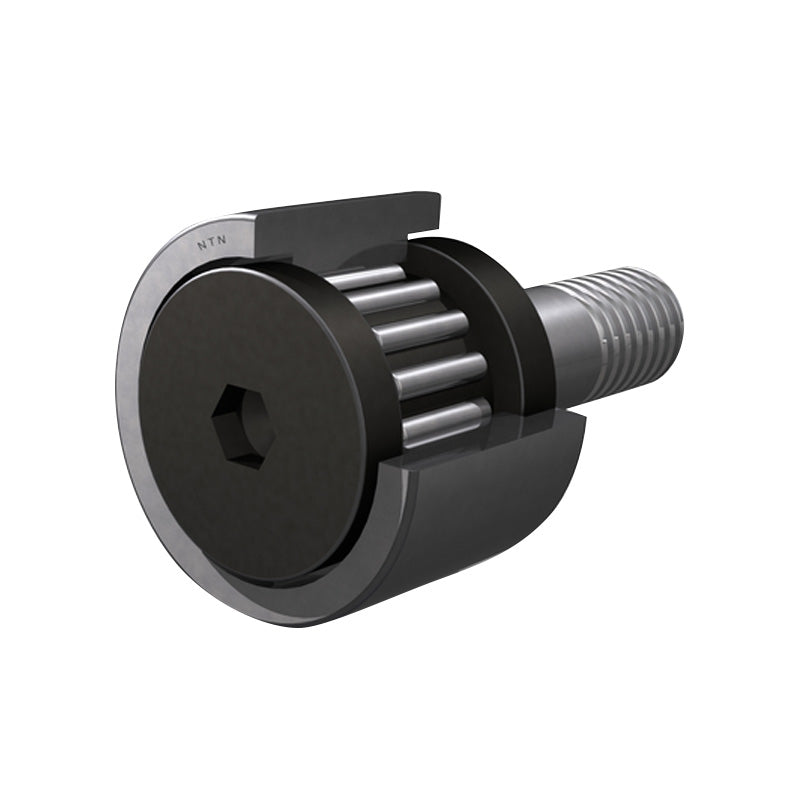

NTN KRV19FXLL/3AS Cylindrical Cam Follower 19x11x8mm M8X1.25 Thread - Allow 2-3 Days
NTN KRV19FXLL/3AS Cylindrical Cam Follower 19x11x8mm M8X1.25 Thread - Allow 2-3 Days
Regular price
$41.20
ex VAT
Regular price
Sale price
$41.20
ex VAT
In stock
Price Break
3+
$30.69
4+
$29.45
9+
$28.83
19+
$27.90
49+
$27.28
99+
$25.73
499+
$21.70
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
NTN Cam Followers: These Cam Followers are engineered to deliver reliable, long-lasting performance in demanding linear motion and rotary applications. Designed with a thick outer ring, high-quality needle rollers, and robust internal construction, these cam followers offer exceptional load capacity, smooth rotation, and superior wear resistance. Ideal for use in automated machinery, conveyors, indexing equipment, and cam-driven systems, NTN Cam Followers provide consistent accuracy and dependable operation even under heavy or shock loads. Their sealed design helps protect against contamination and reduces maintenance requirements, ensuring long service life. Benefits: High load capacity, high durability, low friction operation |
- Brand / Quality:
- NTN - High Quality
- Outside Diameter:
- 19mm
- Width:
- 11mm
- Pitch:
- M8X1.25
Technical
Technical

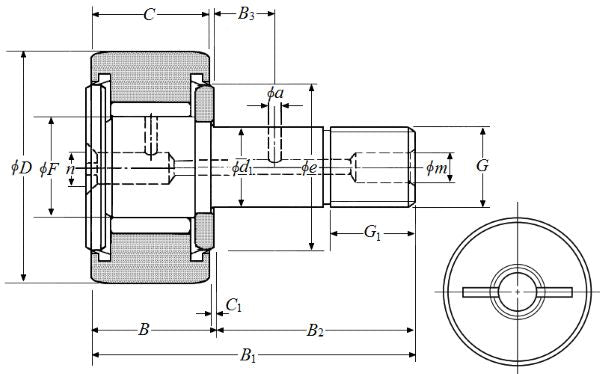

| D - Outside diameter | 19mm |
|---|---|
| d1 - Stud diameter | 8mm |
| C - Outer ring width | 11mm |
| F - Under roller diameter | 10mm |
| B - Bearing / Inner ring width | 12mm |
| B1 - Total stud length | 32mm |
| B2 - Stud rod length | 20mm |
| G - Stud thread designation | M8X1.25 |
| G1 - Thread length | 10mm |
| C1 - Distance between roller and washer face | 0.6mm |
| n - Axial lubrication hole diameter | 4mm |
| e - Inlet diameter | 14mm |
| Maximum tightening torque | 8 n-m |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 7.45 kN |
| C0r - Static load rating | 11.7 kN |
| Track load capacity | 4.05 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
