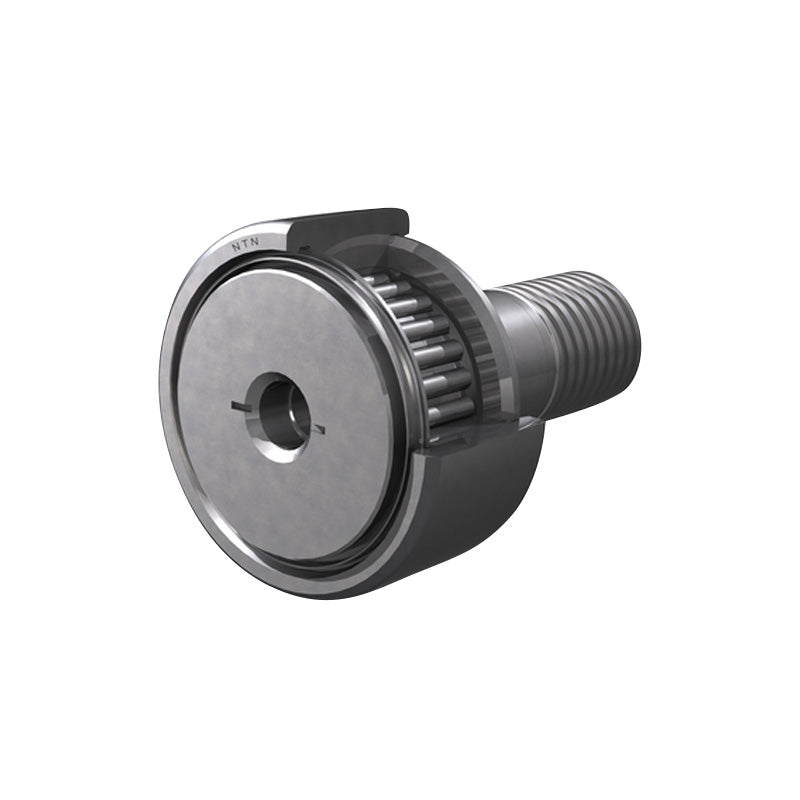

• NTN KRV26FLLH/3AS Hex Head Crowned Cam Follower 26x12x10mm M10X1.25 Thread
  • NTN
1 2

SKU: KRV26FLLH/3AS-NTN

NTN KRV26FLLH/3AS Hex Head Crowned Cam Follower 26x12x10mm M10X1.25 Thread

NTN KRV26FLLH/3AS Hex Head Crowned Cam Follower 26x12x10mm M10X1.25 Thread
$35.18 ex VAT
$35.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $23.57
4+ $22.24
9+ $21.98
19+ $21.71
49+ $21.45
99+ $21.18
499+ $19.86
999+ $19.60
1999+ $19.33
2999+ $19.07
4999+ $18.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Outside Diameter:
26mm
Width:
12mm
Pitch:
M10X1.25
Technical
D - Outside diameter 26mm
d1 - Stud diameter 10mm
C - Outer ring width 12mm
F - Under roller diameter 12mm
B - Bearing / Inner ring width 13mm
B1 - Total stud length 36mm
B2 - Stud rod length 23mm
G - Stud thread designation M10X1.25
G1 - Thread length 12mm
C1 - Distance between roller and washer face 0.6mm
n - Axial lubrication hole diameter 4mm
e - Inlet diameter 17mm
h - Hexagonal hole diameter 4mm
R - Track roller radius 500mm
Maximum tightening torque 14 n-m
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 8.2 kN
C0r - Static load rating 14 kN
Track load capacity 2.12 kN
N - Grease lubrication limit speed 8500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
