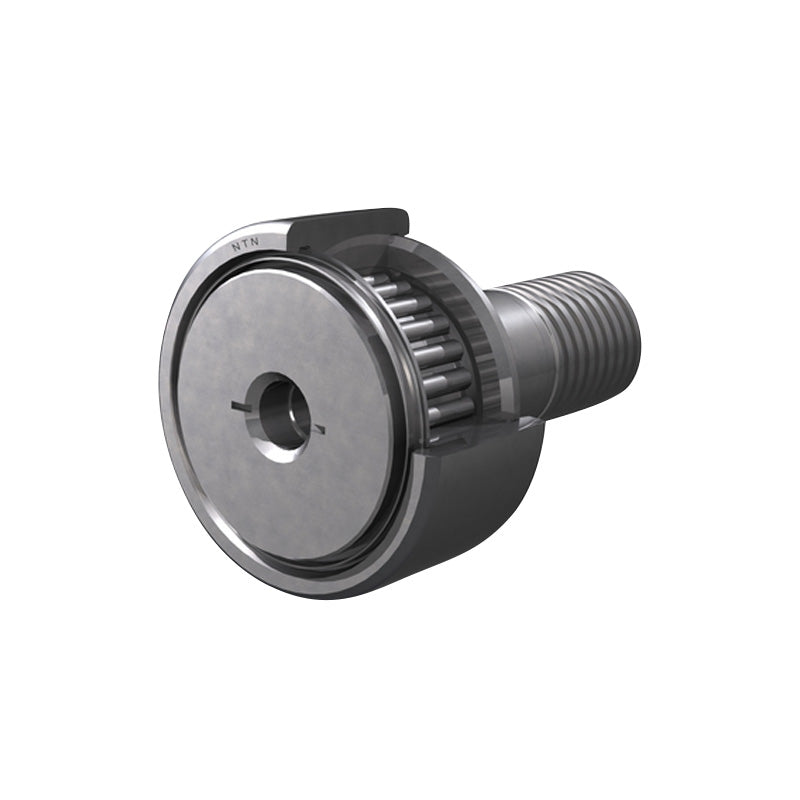

• NTN KRV30LLH/3AS Hex Head Crowned Cam Follower 30x14x12mm M12X1.5 Thread
  • NTN
1 2

SKU: KRV30LLH/3AS-NTN

NTN KRV30LLH/3AS Hex Head Crowned Cam Follower 30x14x12mm M12X1.5 Thread

NTN KRV30LLH/3AS Hex Head Crowned Cam Follower 30x14x12mm M12X1.5 Thread
$41.77 ex VAT
$41.77 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.98
4+ $26.41
9+ $26.10
19+ $25.78
49+ $25.47
99+ $25.15
499+ $23.58
999+ $23.27
1999+ $22.95
2999+ $22.64
4999+ $22.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Outside Diameter:
30mm
Width:
14mm
Pitch:
M12X1.5
Technical
D - Outside diameter 30mm
d1 - Stud diameter 12mm
C - Outer ring width 14mm
F - Under roller diameter 15mm
B - Bearing / Inner ring width 15mm
B1 - Total stud length 40mm
B2 - Stud rod length 25mm
G - Stud thread designation M12X1.5
G1 - Thread length 13mm
B3 - Distance between face and lubrication hole 6mm
C1 - Distance between roller and washer face 0.6mm
n - Axial lubrication hole diameter 6mm
a - Radial lubrication hole diameter 3mm
e - Inlet diameter 23mm
h - Hexagonal hole diameter 6mm
R - Track roller radius 500mm
Maximum tightening torque 20 n-m
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 12 kN
C0r - Static load rating 20.3 kN
Track load capacity 2.62 kN
N - Grease lubrication limit speed 6500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
