SKU: KRV52PPA-MB

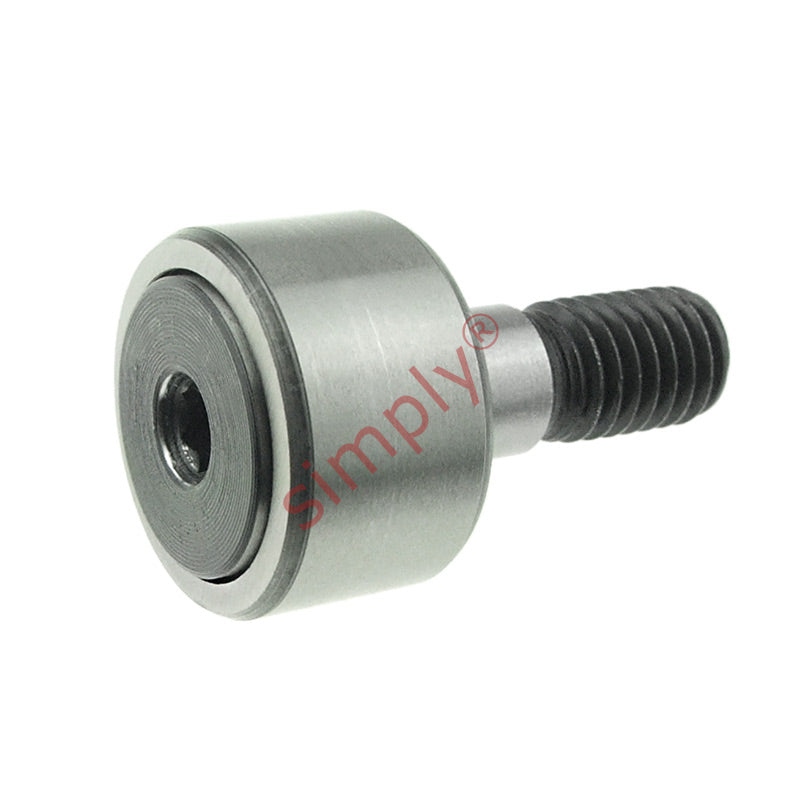

Major Brand KRV52PPA Contact Sealed Crowned Cam Follower 52x24x20 M20x1.5 Thread
Major Brand KRV52PPA Contact Sealed Crowned Cam Follower 52x24x20 M20x1.5 Thread
Regular price
$111.20
ex VAT
Regular price
Sale price
$111.20
ex VAT
In stock
Price Break
10+
$74.48
19+
$70.30
29+
$69.46
39+
$68.62
49+
$67.79
74+
$66.95
99+
$62.76
199+
$61.93
249+
$61.09
499+
$60.25
999+
$58.58
Quantity
Couldn't load pickup availability
Share this product
Description
Description
KRV-PP Series Crowned Cam Followers: These cam followers incorporate a full complement needle roller assembly allowing for maximum load support. Manufactured with a needle roller design that permits a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed-on side washer. Also, these cam followers are supplied with contact seals on both sides. Because of the high load tolerance, these cam followers cannot operate continuously at the same high speeds as the KR series. |
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 52mm
- Width:
- 24mm
- Pitch:
- M20x1.5
Technical
Technical
| D | 52mm |
|---|---|
| C | 24mm |
| d(Stud Diameter) | 20mm |
| B | 66mm |
| B1 | 40.5mm |
| B2 | 9mm |
| C1 | 0.8mm |
| d1 | 36.5mm |
| G | M20x1.5 |
| G1 | 21mm |
| M1 | 4mm |
| r min | 1mm |
| SW | 10mm |
| Dynamic load | 20900 N |
| Static load | 46500 N |
| Fatigue load limit Pu | 5600 N |
| Radial dynamic load | 45000 N |
| Radial static load | 64000 N |
| Speed rating | 1300 rpm |
| Weight | 460 g |
