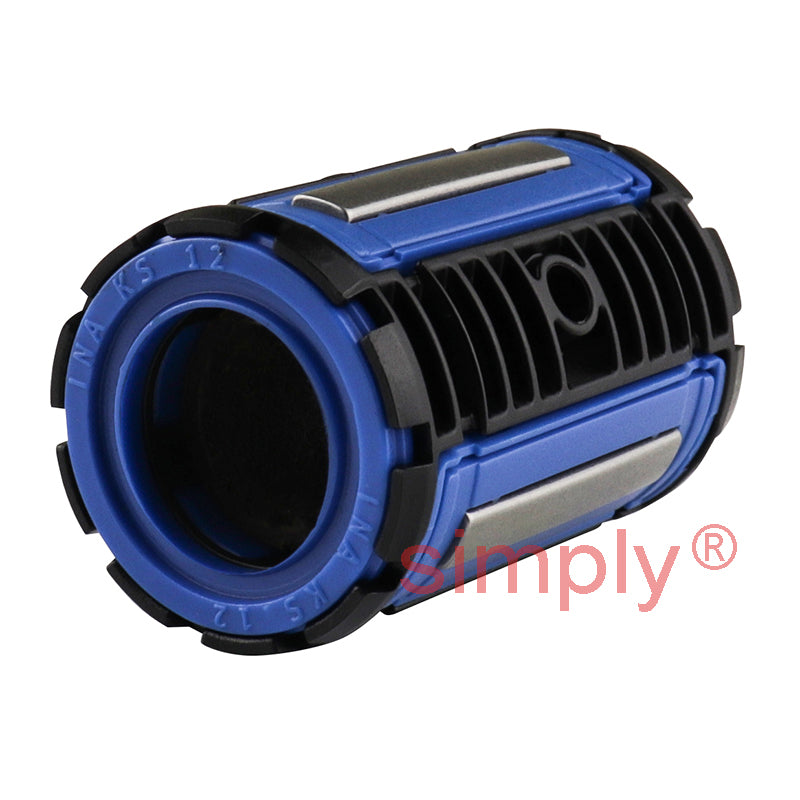

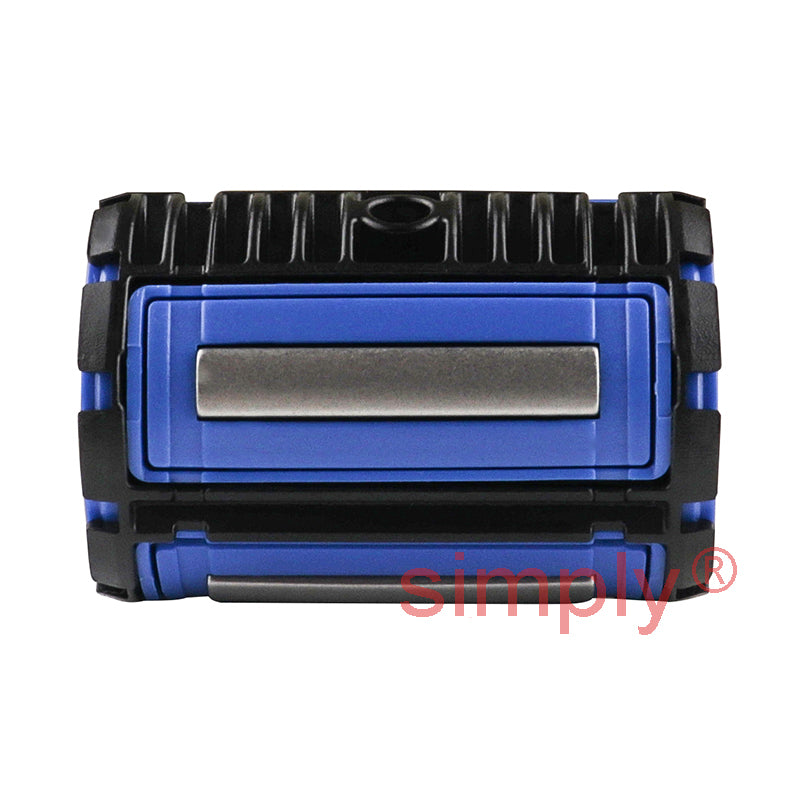

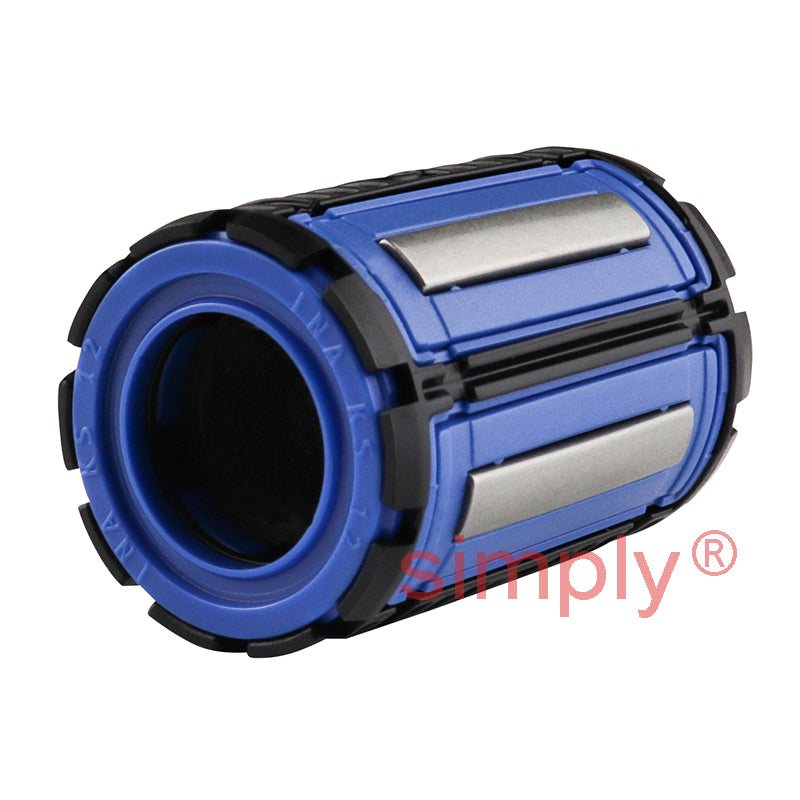

• INA KS12 Closed Self Aligning Linear Ball Bushing with Gap Seals 12x22x32mm
  • INA
1 2

SKU: KS12-INA

INA KS12 Closed Self Aligning Linear Ball Bushing with Gap Seals 12x22x32mm

INA KS12 Closed Self Aligning Linear Ball Bushing with Gap Seals 12x22x32mm
$44.63 ex VAT
$44.63 ex VAT
Sale Sold out

In stock

Price Break
3+ $29.90
5+ $28.22
10+ $27.88
15+ $27.54
20+ $27.21
30+ $26.87
40+ $25.19
50+ $24.86
60+ $24.52
75+ $24.18
100+ $23.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
12mm
Outside Diameter:
22mm
Width:
32mm
Technical
Fw 12mm
D 22mm
L 32mm
BL2 1.3mm
DN 21mm
L2 22.6mm
N4 3mm
Mass 0.018 kg
Basic dynamic load rating C min 630 N
Basic static load rating C0 min 600 N
Basic dynamic load rating C max 900 N
Basic static load rating C0 max 1100 N
