SKU: KX32-PP-INA

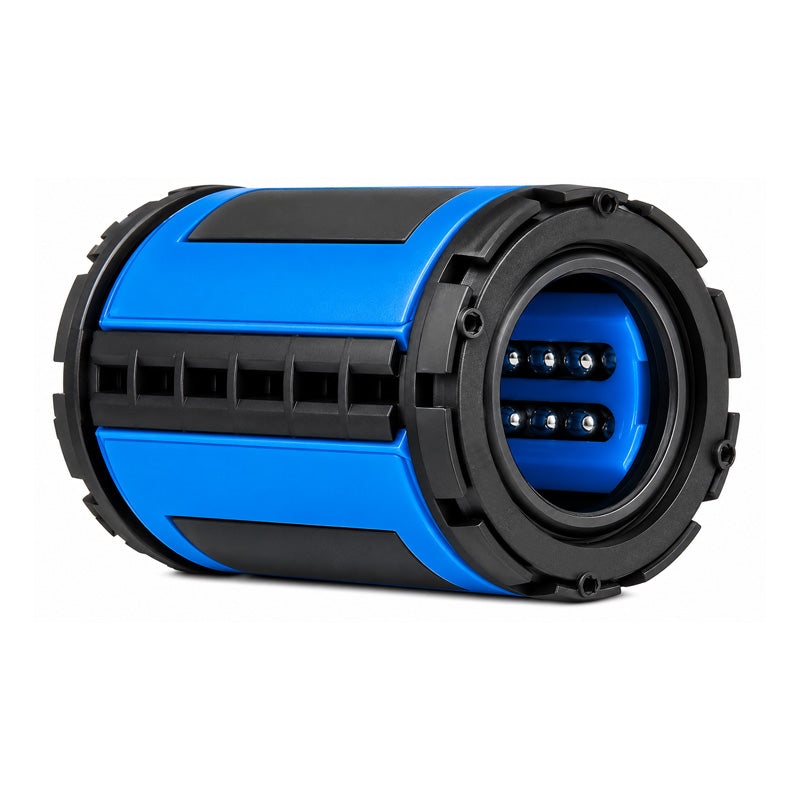

INA KX32PP Imperial Closed Self Aligning Linear Ball Bushing with Contact Seals 2x3x4 inch - Allow 2-3 Days
INA KX32PP Imperial Closed Self Aligning Linear Ball Bushing with Contact Seals 2x3x4 inch - Allow 2-3 Days
Regular price
$1,470.38
ex VAT
Regular price
Sale price
$1,470.38
ex VAT
In stock
Price Break
3+
$1,051.15
5+
$995.82
10+
$940.50
15+
$885.18
20+
$863.05
30+
$840.92
40+
$730.27
50+
$0.00
60+
$0.00
75+
$0.00
100+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
INA KX..-PP Imperial Self Aligning Linear Ball Bearings: These heavy duty range linear ball bearing and housing units have particularly high load carrying capacity and have an angular adjustment facility for compensation of misalignments. KX linear ball bearings can compensate misalignment of up to ±40 deg. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with lip seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, compensates misalignments, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 76.2mm = 3 inch
- Width:
- 101.6mm = 4 inch
Technical
Technical

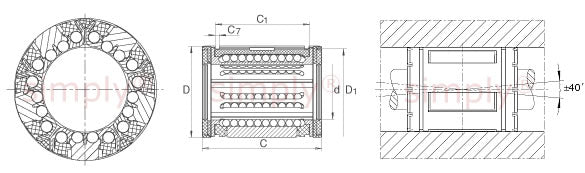

| d | 2 inch |
|---|---|
| D | 3 inch |
| C | 4 inch |
| Number of rows of balls | 10 |
| C1 | 3.203 inch |
| C7 | 0.103 inch |
| d1 | 2.838 inch |
| Mass | 1.54 lbs |
| Basic dynamic load rating C | 3500 lbf |
| Basic static load rating C0 | 2750 lbf |
