• Timken L163149/L163110CD/L163149XE TDO Double Outer Race Taper Roller Bearing 14x17.5x5.375x4.375 inch - Allow 2-3 Days
  • Timken L163149/L163110CD/L163149XE TDO Double Outer Race Taper Roller Bearing 14x17.5x5.375x4.375 inch - Allow 2-3 Days
  • Timken
1 3

SKU: L163149/L163110CD/L163149XE-TIM

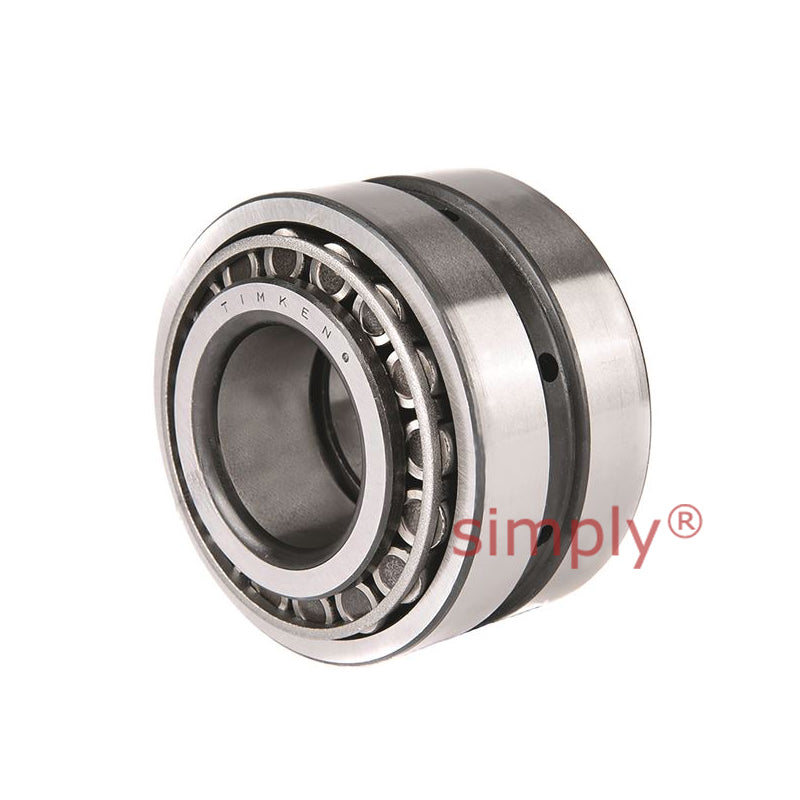

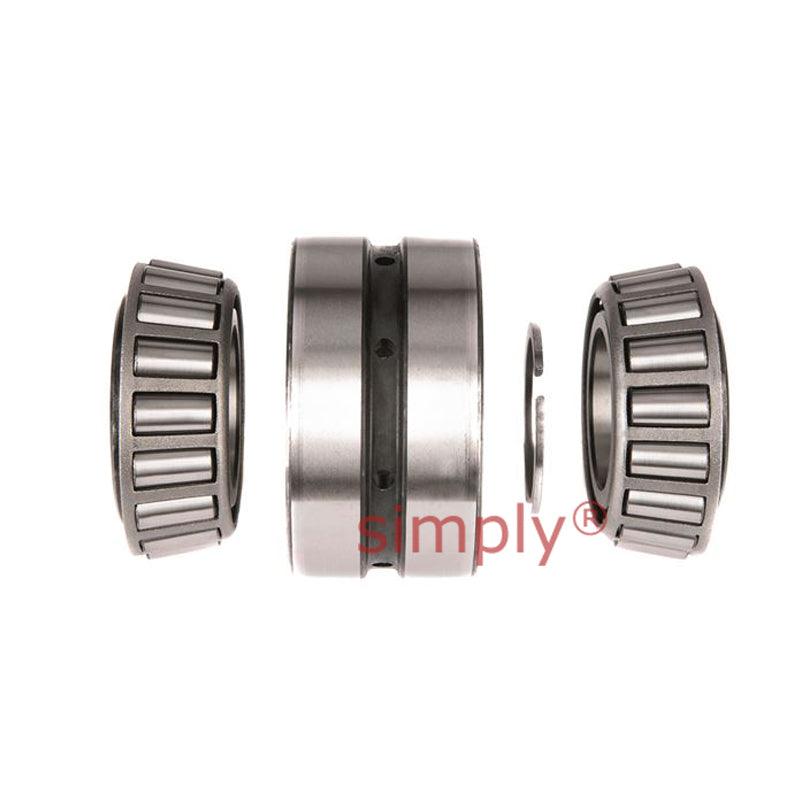

Timken L163149/L163110CD/L163149XE TDO Double Outer Race Taper Roller Bearing 14x17.5x5.375x4.375 inch - Allow 2-3 Days

Timken L163149/L163110CD/L163149XE TDO Double Outer Race Taper Roller Bearing 14x17.5x5.375x4.375 inch - Allow 2-3 Days
$14,020.66 ex VAT
$14,020.66 ex VAT
Sale Sold out

Low stock

Price Break
10+ $10,551.13
20+ $10,499.43
30+ $10,446.67
40+ $10,341.15
50+ $10,235.62
75+ $10,130.10
100+ $10,024.58
200+ $0.00
250+ $0.00
500+ $0.00
1000+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Timken - High Quality
Inside Diameter:
355.60mm = 14 inch
Outside Diameter:
444.50mm = 17.5 inch
Width:
136.53mm = 5.375 inch
Technical
d 355.6mm = 14 inch
D 444.5mm = 17.5 inch
T 136.525mm = 5.375 inch
C 111.125mm = 4.375 inch
Dynamic (1) C1 1250000N
Factors (5) e 0.31
Factors (5) Y1 2.2
Factors (5) Y2 3.27
Dynamic (2) C90 186000N
Dynamic (2) Ca90 98000N
Dynamic (2) C90(2) 324000N
Factors (5) K 1.9
Shaft max shaft fillet radius R(3) 3.5mm = 0.14 inch
Shaft backing shoulder diameter db 374mm = 14.72 inch
Housing max shaft fillet radius r(3) 1.5mm = 0.06 inch
Housing backing shoulder diameter Da 430mm = 16.93 inch
Pin Ka 22.1mm = 0.87 inch
Pin Kb 9.4mm = 0.37 inch
G1 3210
G2 621
Cg 0.1838
