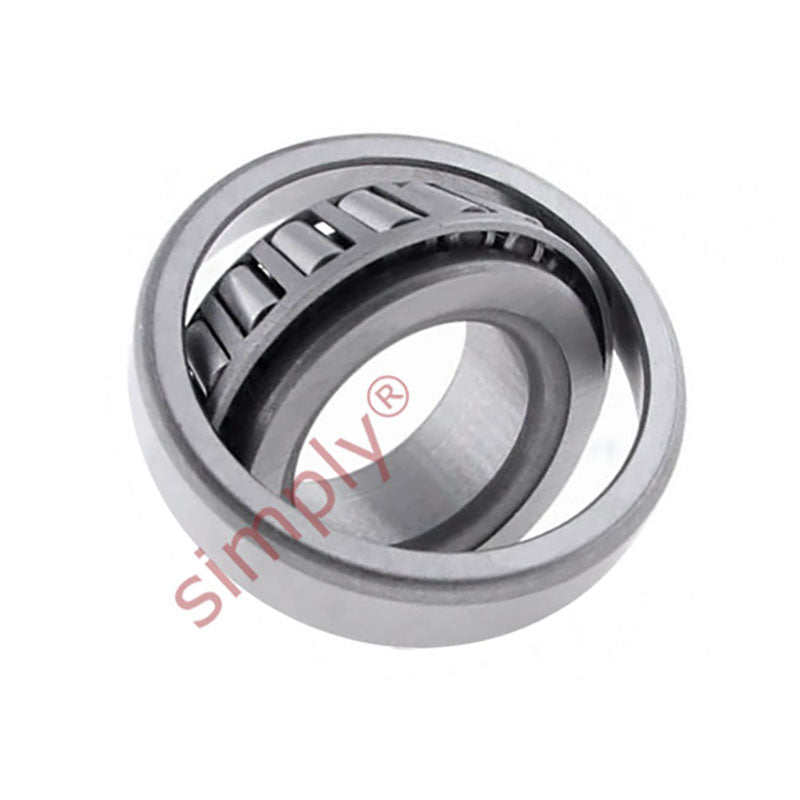

• SKF L44643/610 Imperial Taper Roller Bearing 1x1.98x0.56 inches
1 1

SKU: L44643/610-SKF

SKF L44643/610 Imperial Taper Roller Bearing 1x1.98x0.56 inches

SKF L44643/610 Imperial Taper Roller Bearing 1x1.98x0.56 inches
$56.00 ex VAT
$56.00 ex VAT
Sale Sold out

In stock

Price Break
10+ $37.52
19+ $35.41
29+ $34.99
39+ $34.57
49+ $34.15
74+ $33.72
99+ $31.62
199+ $31.19
249+ $30.77
499+ $30.35
999+ $29.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
25.4mm = 1 inch
Outside Diameter:
50.29mm = 1.98 inch
Width:
14.22mm = 0.56 inch
Seals / Shields:
None
Technical
d 25.4mm
D 50.292mm
T 14.224mm
Dynamic load 26 kN
Static load 30 kN
Fatigue load limit Pu 3 kN
Reference speed 10000 rpm
Limiting speed 15000 rpm
Weight 0.13 kg
d1 39.1mm
B 14.732mm
C 10.668mm
r1r2 min 1.3mm
r3r4 min 1.3mm
a 11mm
da max 33mm
db min 31.5mm
Da min 43.5mm
Da max 43.5mm
Db min 47mm
Ca min 2mm
Cb min 3.5mm
ra max 1.3mm
rb max 1.3mm
Calculation factor e 0.37
Calculation factor Y 1.6
Calculation factor Y0 0.9
