SKU: LAGD400-SKF

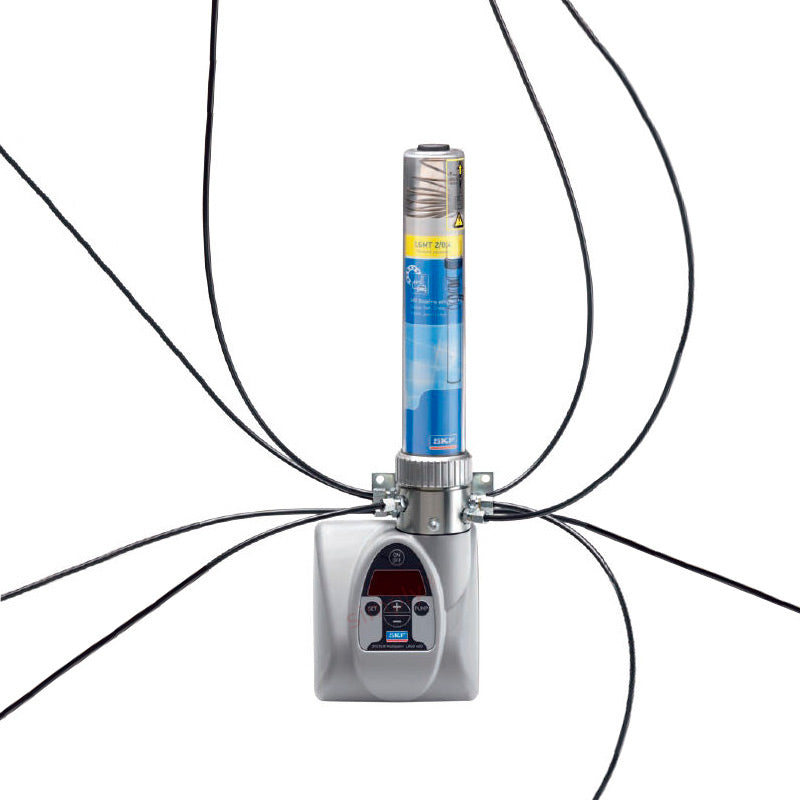

SKF LAGD400 MultiPoint Automatic Lubricator
Out of stock
Share this product
Description
MultiPoint automatic lubricator LAGD 400: The lubrication of bearings with the correct type and quantity of grease is essential for trouble-free operation. Research has shown that 36% of all bearings fail prematurely due to incorrect lubrication. Especially for installations with multiple lubrication points, this can be a time-consuming and costly process. LAGD 400, the centralised automatic lubricator, is the most user-friendly and cost-effective automatic lubricator for multiple grease lubrication points available today. Its compact design, combined with electronically controlled accuracy, makes it an excellent solution for longer bearing-life and increased uptime of your machinery.
Benefits: Being a do-it-yourself lubrication system, SKF MultiPoint Automatic Lubricator can be easily installed without the assistance of a costly lubrication service company and requires no special training to use.
Note: Up to 8 feed lines. A cartidge of SKF LGMT 2 is provided. NLGI 1,2 and 3 grease are suitable.
- Brand / Quality:
- SKF - High Quality
Technical
| 8-outlet lubricator | 1 Piece |
|---|---|
| 20m tubing | 1 Piece |
| 2 Y-connectors | 2 Pieces |
| LGMT 2/0.4 grease cartridge | 1 Piece |
| LGMT 2/0.4 grease cartridge | 1 - 8 |
| Maximum pressure | 40 bar (600 psi) |
| Suitable grease | NLGI 1, 2 and 3 |
| Maximum length of feed-lines | 5 m (16 ft) |
| Ambient temperature | 0 - 50 ?C (32 - 120 ?F) |
| Drive mechanism | Electro-mechanical |
| Volume | 0,1 - 10 cm3/day (0.003 - 0.35 US fl. oz/day) per outlet approx. 0,6 - 65 g/week (0.02 -2.3 oz/week) |
| Power | 110-240V AC, 50-60Hz or 24V DC |
| Alarms | Blocked feed lines, empty cartridge; internal and external |
| External steering | External relay steering |
| IP rating | 54 |
| Lubrication tubes | 20 m (65 ft), Nylon, 6 x 1,5 mm (1/4 x 0.06 in.) |
| Connection thread | G 1/4 |
| Height | 510 mm (20 in.) |
