• INA LASE20XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 20mm Bore
  • INA
1 2

SKU: LASE20-XL-N-INA

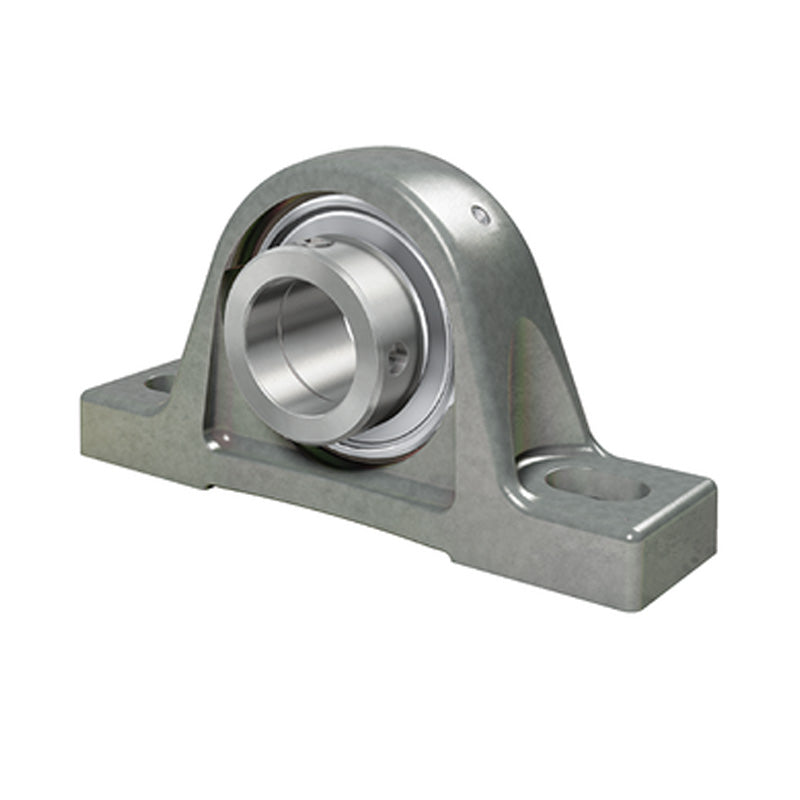

INA LASE20XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 20mm Bore

INA LASE20XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 20mm Bore
$56.79 ex VAT
$56.79 ex VAT
Sale Sold out

In stock

Price Break
4+ $38.04
9+ $35.90
19+ $35.47
29+ $35.05
39+ $34.62
49+ $34.19
59+ $32.06
69+ $31.63
79+ $31.20
89+ $30.77
99+ $29.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Style:
LASE
Bolt Hole Centres:
97mm
Technical
d 20mm
L 130mm
H2 64mm
A 32mm
A1 19mm
B1 43.7mm33mm
H 33.3mm
H1 14.5mm
J 97mm
N 11mm
N1 19mm
Q M6
S1 26.6mm
Mass 0.63 kg
Basic dynamic load rating Cr 13600 N
Basic static load rating Cor 6600 N
Designation of housing ASE04
Designation of bearing GE20-XL-KLL-B
Bearing end cap, closed design (to be ordered separately) KASK04
