SKU: LAZY/12
12 inch Round Lazy Susan Turntable Bearing
12 inch Round Lazy Susan Turntable Bearing
Regular price
$17.06
ex VAT
Regular price
Sale price
$17.06
ex VAT
In stock
Price Break
10+
$11.43
19+
$10.79
29+
$10.66
39+
$10.53
49+
$10.40
74+
$10.27
99+
$9.63
199+
$9.50
249+
$9.37
499+
$9.25
999+
$8.99
Quantity
Couldn't load pickup availability
Share this product
Description
Description

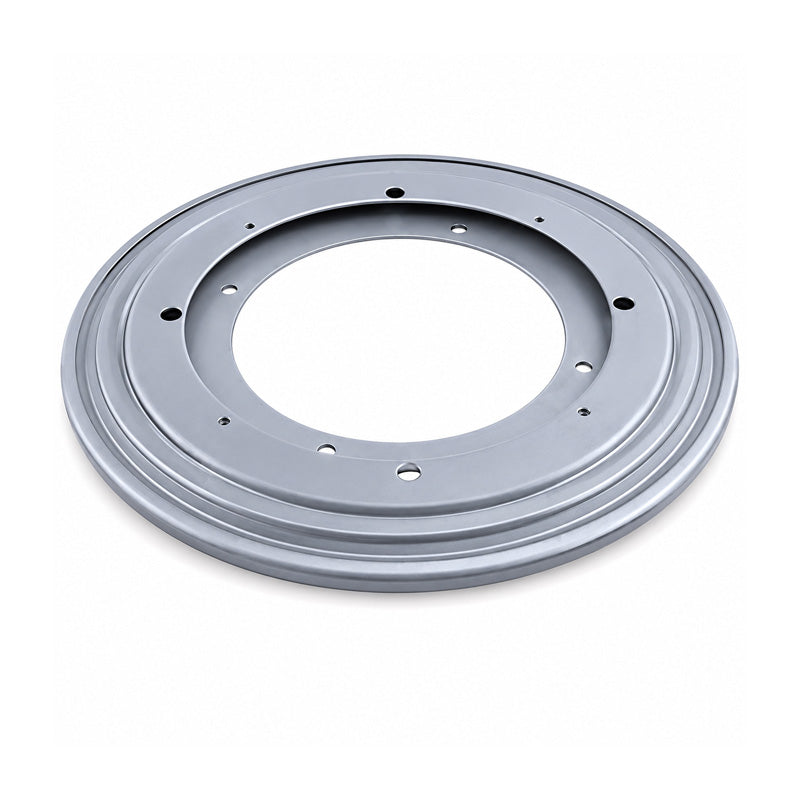

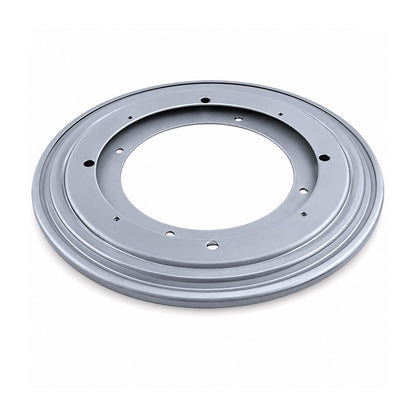

Lazy Susan Turntable Bearings: Galvanised pressed steel construction with fixing holes in both upper and lower plates, spins freely on a single row of captive ball bearings. Maximum load 1000lbs
Benefits: High quality & low cost, resistant to corrosion, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
- Brand / Quality:
- Triangle Mfg - High Quality
- Inside Diameter:
- 160.8mm = 6.33 inch
- Outside Diameter:
- 304.8mm = 12 inch
- Thickness:
- 8.33mm = 0.328 (21/64 ) inch
Technical
Technical
| Nominal Inside Diameter | 6.33 inch = 160.8mm |
|---|---|
| Nominal Outside Diameter | 12 inch = 304.8mm |
| W | 21/64 inch = 8.33mm |
| Pitch Circle Diameter | 9.47 inch = 240.5mm |
| Max Load Weight | 1000 lbs |
| Weight | 0.7551kg |
