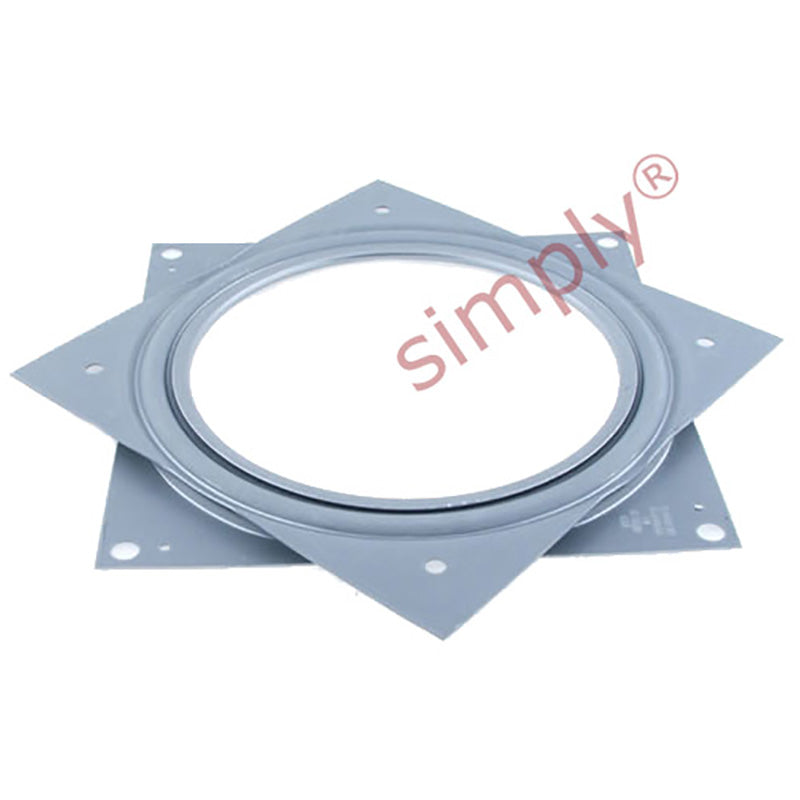

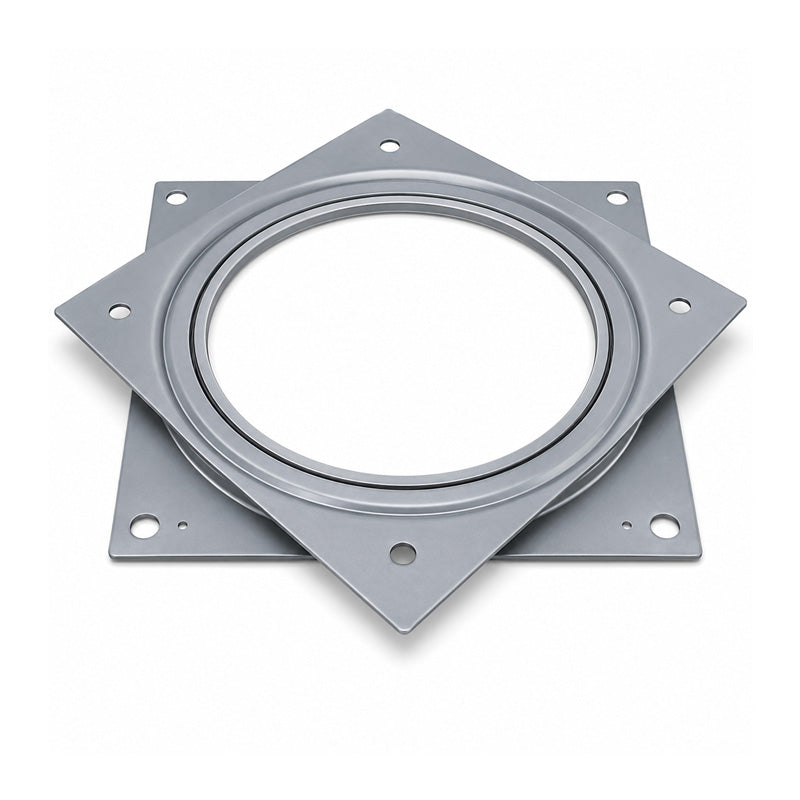

3 inch Square Lazy Susan Turntable Bearing
3 inch Square Lazy Susan Turntable Bearing
Regular price
$5.05
ex VAT
Regular price
Sale price
$5.05
ex VAT
In stock
Price Break
10+
$3.38
19+
$3.19
29+
$3.16
39+
$3.12
49+
$3.08
74+
$3.04
99+
$2.85
199+
$2.81
249+
$2.78
499+
$2.74
999+
$2.66
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Lazy Susan Turntable Bearings: Galvanised pressed steel construction with fixing holes in both upper and lower plates, spins freely on a single row of captive ball bearings. Maximum load 200 lbs
Benefits: High quality & low cost, resistant to corrosion, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
- Brand / Quality:
- Triangle Mfg - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 76.2mm = 3 inch
- Thickness:
- 7.93mm = 0.312 (5/16) inch

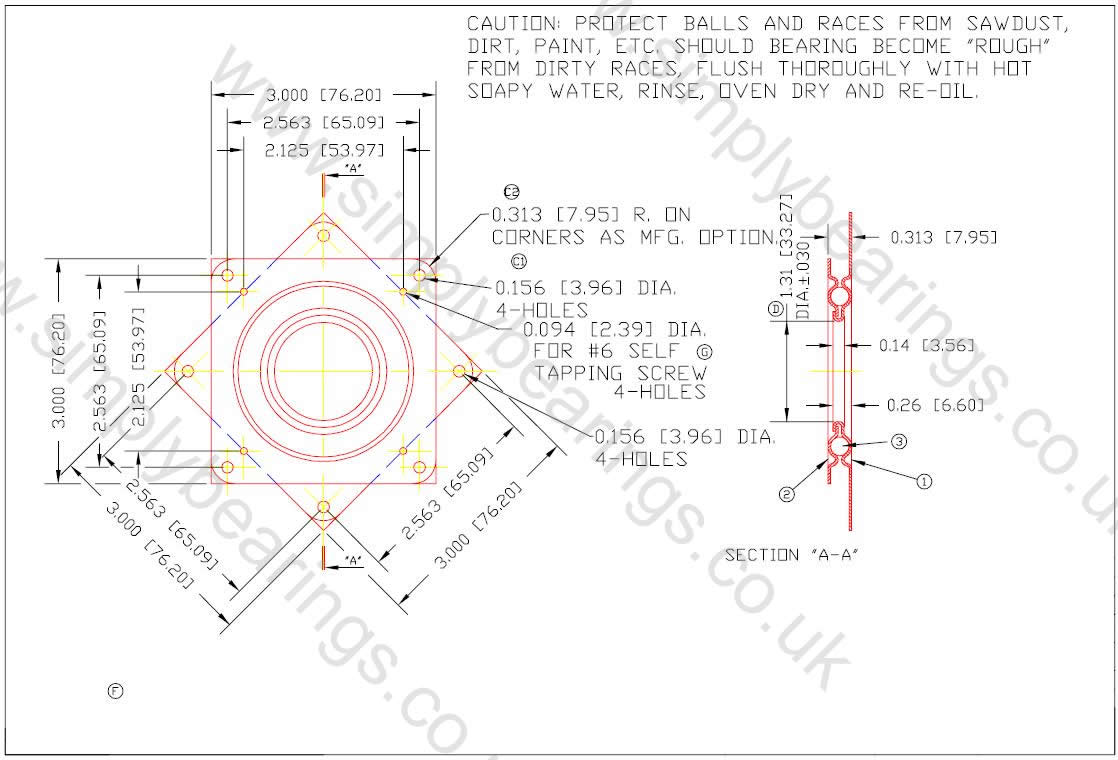

Technical
Technical
| Nominal Inside Diameter | 1.25 inch = 31.75mm |
|---|---|
| Nominal Outside Diameter | 3 inch = 76.2mm |
| W | 5/16 inch = 7.93mm |
| Pitch Circle Diameter | 2.56 inch = 65mm |
| Max Load Weight | 200 lbs |
| Weight | 0.08185kg |
