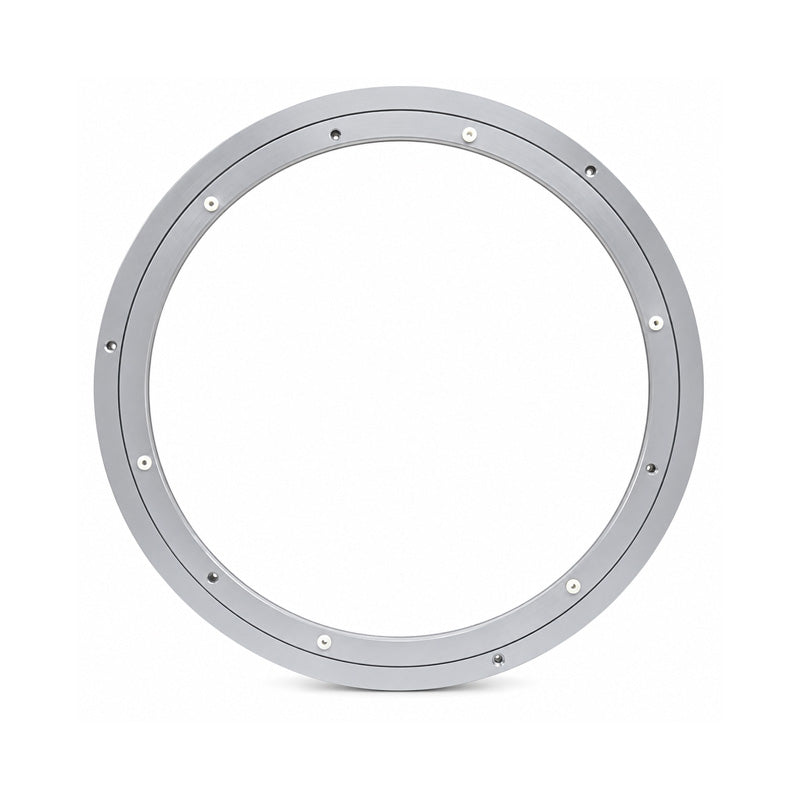

390mm Round Lazy Susan Rotating Aluminium Turntable Bearing
390mm Round Lazy Susan Rotating Aluminium Turntable Bearing
Regular price
$54.77
ex VAT
Regular price
Sale price
$54.77
ex VAT
In stock
Price Break
10+
$36.69
19+
$34.63
29+
$34.21
39+
$33.80
49+
$33.39
74+
$32.98
99+
$30.92
199+
$30.50
249+
$30.09
499+
$29.68
999+
$28.86
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Lazy Susan Turntable Bearings: Aluminium construction with fixing holes in inner plate, spins freely on a single row of captive ball bearings. Maximum load 250 lbs
Benefits: Heavy duty, rust and weather proof, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
The dimensions of this multisourced, semi-precision component are approximate. Actual dimensions available on request.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 338mm = 13.31 inch
- Outside Diameter:
- 390mm = 15.35 inch
- Thickness:
- 8.5mm = 0.33 inch
Technical
Technical

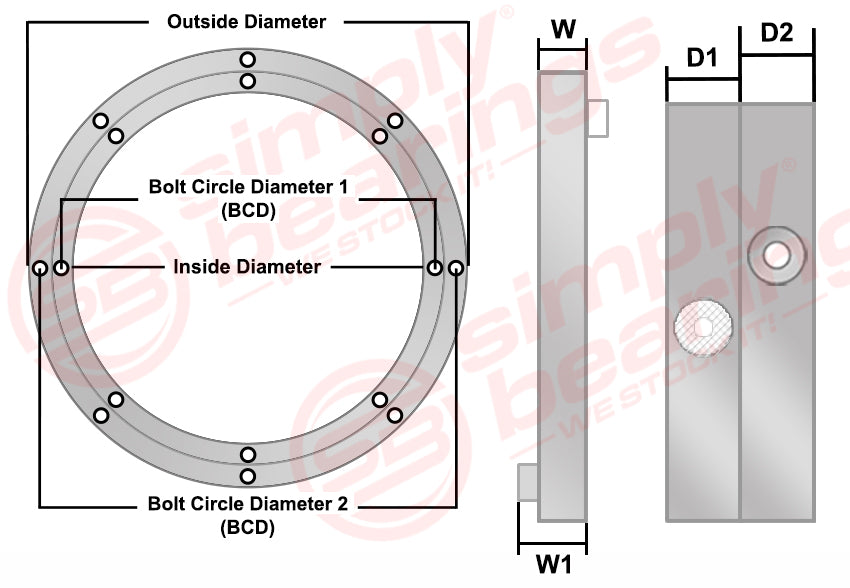

| Nominal Inside Diameter | 338mm = 13.31 inch |
|---|---|
| Nominal Outside Diameter | 390mm = 15.35 inch |
| W | 8.5mm = 0.33 inch |
| W1 | 12.5mm = 0.49 inch |
| D1 | 13mm = 0.51 inch |
| D2 | 13mm = 0.51 inch |
| Bolt Hole Diameter | 5mm = 0.19 inch |
| Bolt Circle Diameter 1 | 344.5mm = 13.56 inch |
| Bolt Circle Diameter 2 | 383.5mm = 15.1 inch |
| Max Load Weight | 250 lbs |
| Weight | 0.7178kg |
