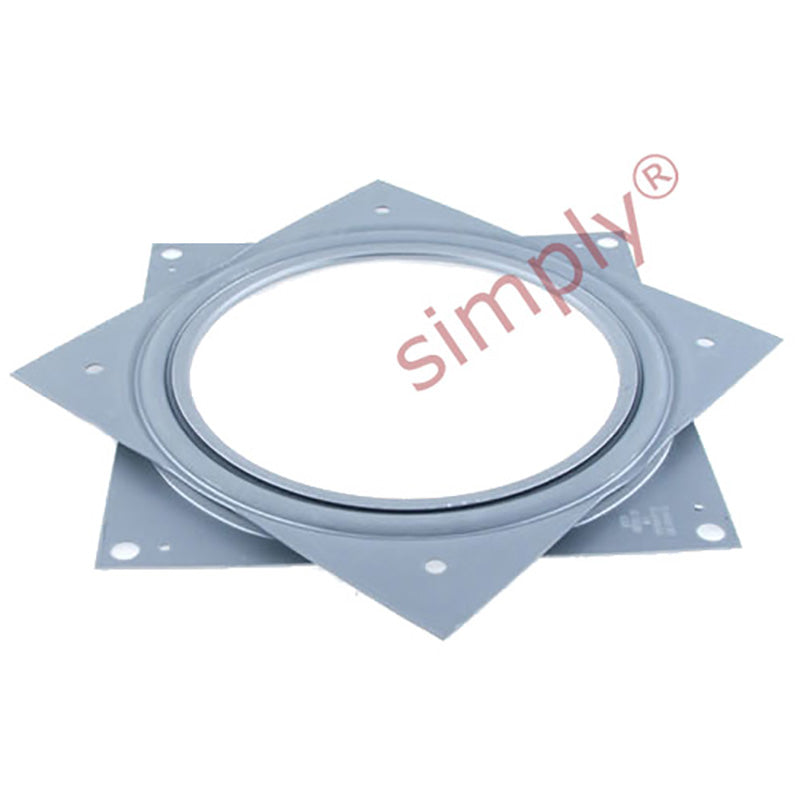

4 inch Square Lazy Susan Turntable Bearing
4 inch Square Lazy Susan Turntable Bearing
Regular price
$5.98
ex VAT
Regular price
Sale price
$5.98
ex VAT
In stock
Price Break
10+
$4.00
19+
$3.78
29+
$3.73
39+
$3.69
49+
$3.64
74+
$3.60
99+
$3.37
199+
$3.33
249+
$3.28
499+
$3.24
999+
$3.15
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Lazy Susan Turntable Bearings: Galvanised pressed steel construction with fixing holes in both upper and lower plates, spins freely on a single row of captive ball bearings. Maximum load 300 lbs
Benefits: High quality & low cost, resistant to corrosion, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
- Brand / Quality:
- Triangle Mfg - High Quality
- Inside Diameter:
- 56.7mm = 2.23 inch
- Outside Diameter:
- 101.6mm = 4 inch
- Thickness:
- 7.93mm = 0.312 (5/16) inch
Technical
Technical
| Nominal Inside Diameter | 2.23 inch = 56.7mm |
|---|---|
| Nominal Outside Diameter | 4 inch = 101.6mm |
| W | 5/16 inch = 7.93mm |
| Pitch Circle Diameter | 2.16 inch = 55mm |
| Max Load Weight | 300 lbs |
| Weight | 0.1492kg |
