SKU: LAZY/450
450mm Round Lazy Susan Rotating Aluminium Turntable Bearing
450mm Round Lazy Susan Rotating Aluminium Turntable Bearing
Regular price
$68.69
ex VAT
Regular price
Sale price
$68.69
ex VAT
In stock
Price Break
10+
$46.01
19+
$43.43
29+
$42.91
39+
$42.39
49+
$41.87
74+
$41.36
99+
$38.77
199+
$38.26
249+
$37.74
499+
$37.22
999+
$36.19
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Lazy Susan Turntable Bearings: Aluminium construction with fixing holes in inner plate, spins freely on a single row of captive ball bearings. Maximum load 330 lbs
Benefits: Heavy duty, rust and weather proof, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
The dimensions of this multisourced, semi-precision component are approximate. Actual dimensions available on request.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 389mm = 15.31 inch
- Outside Diameter:
- 450mm = 17.72 inch
- Thickness:
- 10mm = 0.39 inch
Technical
Technical

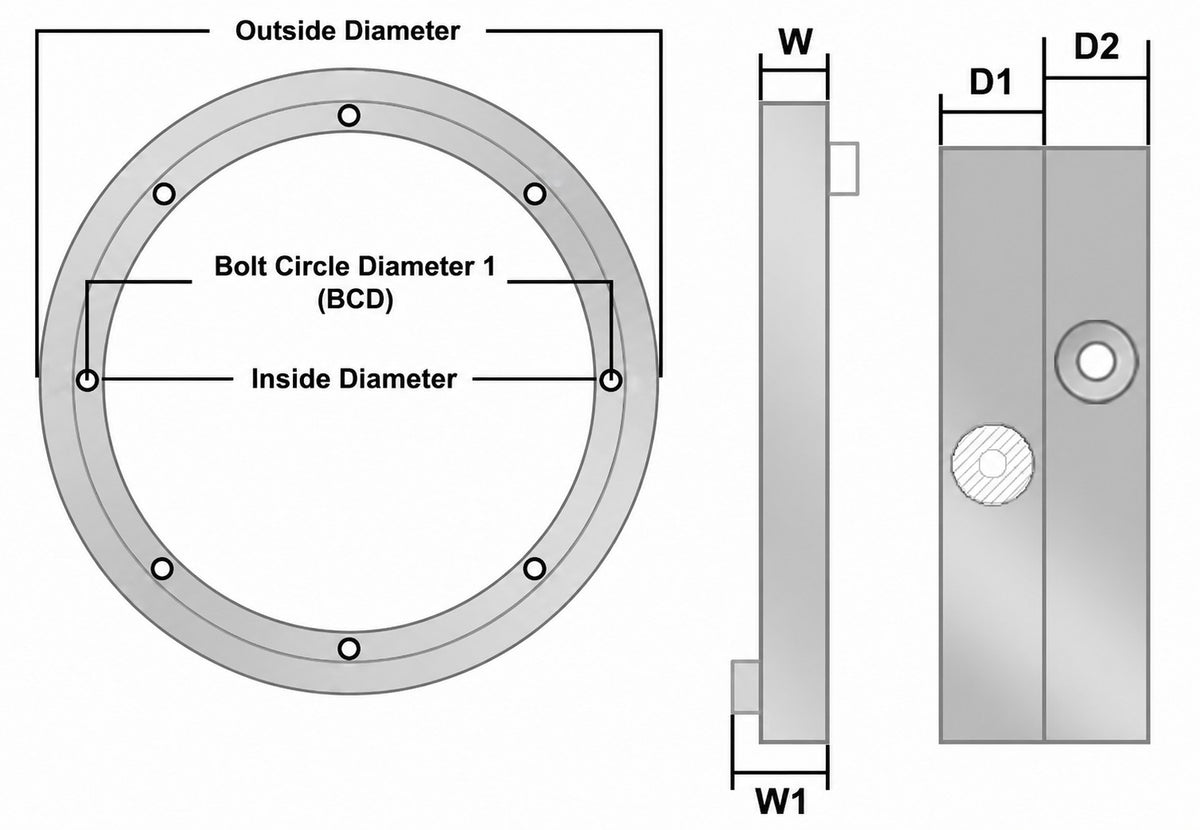

| Nominal Inside Diameter | 389mm = 15.31 inch |
|---|---|
| Nominal Outside Diameter | 450mm = 17.72 inch |
| W | 10mm = 0.39 inch |
| W1 | 13.5mm = 0.53 inch |
| D1 | 15.25mm = 0.6 inch |
| D2 | 15.25mm = 0.6 inch |
| Bolt Hole Diameter | 5mm = 0.19 inch |
| Bolt Circle Diameter 1 | 396.625mm = 15.62 inch |
| Bolt Circle Diameter 2 | 442.375mm = 17.42 inch |
| Max Load Weight | 330 lbs |
| Weight | 1.1092kg |
