SKU: LAZY/490

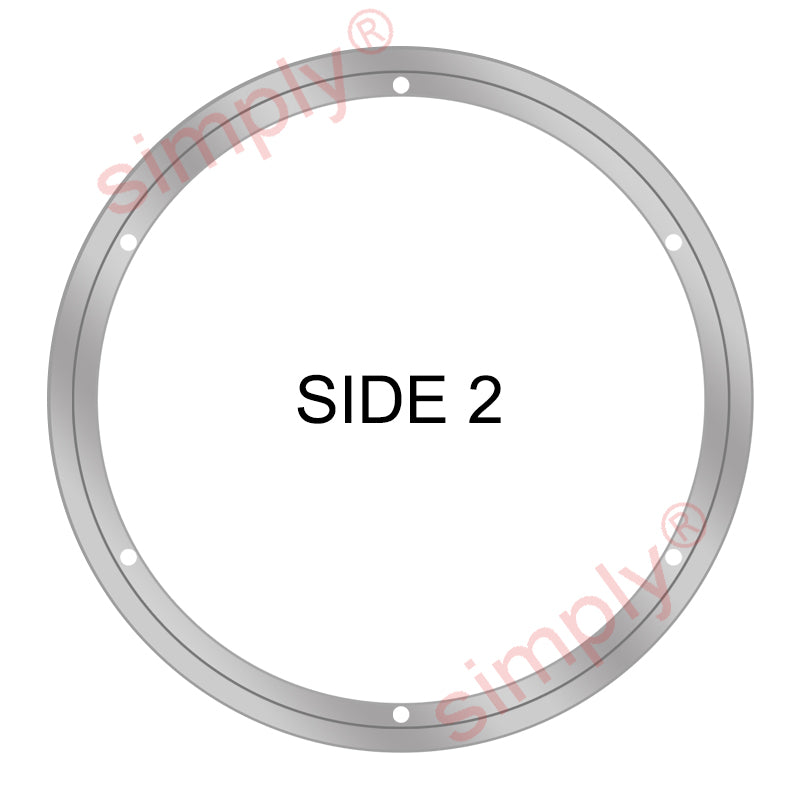

490mm Round Lazy Susan Rotating Aluminium Turntable Bearing
490mm Round Lazy Susan Rotating Aluminium Turntable Bearing
Regular price
$91.77
ex VAT
Regular price
Sale price
$91.77
ex VAT
In stock
Price Break
10+
$61.47
19+
$58.02
29+
$57.33
39+
$56.64
49+
$55.95
74+
$55.26
99+
$51.80
199+
$51.11
249+
$50.42
499+
$49.73
999+
$48.35
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Lazy Susan Turntable Bearings: Aluminium construction with fixing holes in inner plate, spins freely on a single row of captive ball bearings. Maximum load 370 lbs
Benefits: Heavy duty, rust and weather proof, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
The dimensions of this multisourced, semi-precision component are approximate. Actual dimensions available on request.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 423mm = 16.65 inch
- Outside Diameter:
- 490mm = 19.29 inch
- Thickness:
- 10mm = 0.39 inch
Technical
Technical
| Nominal Inside Diameter | 423mm = 16.65 inch |
|---|---|
| Nominal Outside Diameter | 490mm = 19.29 inch |
| W | 10mm = 0.39 inch |
| W1 | 14mm = 0.55 inch |
| D1 | 16.75mm = 0.66 inch |
| D2 | 16.75mm = 0.66 inch |
| Bolt Hole Diameter | 5mm = 0.19 inch |
| Bolt Circle Diameter 1 | 431.375mm = 16.98 inch |
| Bolt Circle Diameter 2 | 481.625mm = 18.96 inch |
| Max Load Weight | 370 lbs |
| Weight | 1.20405kg |
