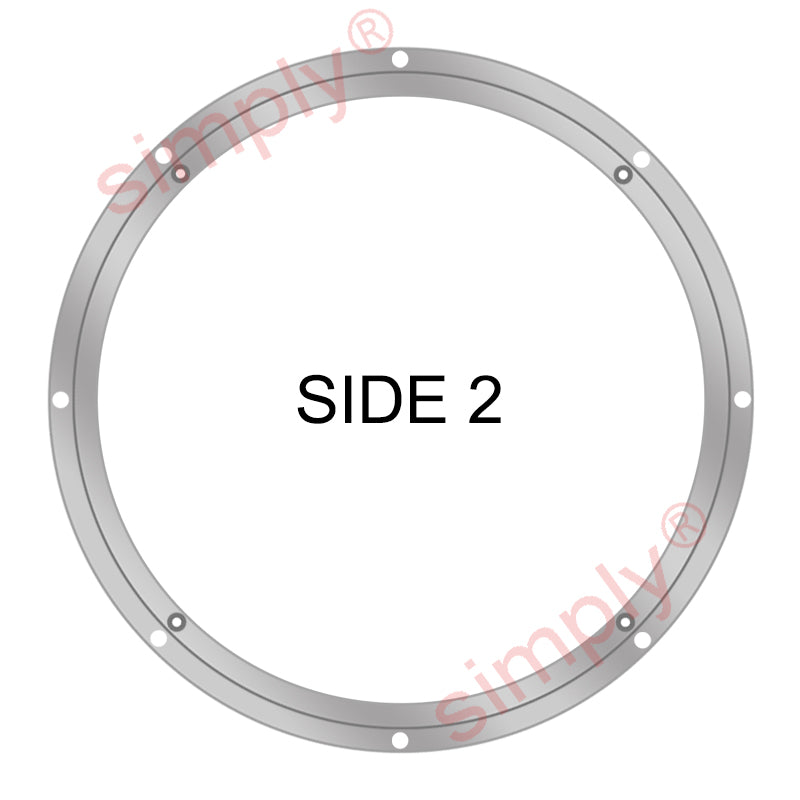

580mm Round Lazy Susan Rotating Aluminium Turntable Bearing
580mm Round Lazy Susan Rotating Aluminium Turntable Bearing
Regular price
$126.86
ex VAT
Regular price
Sale price
$126.86
ex VAT
In stock
Price Break
10+
$84.98
19+
$80.20
29+
$79.25
39+
$78.29
49+
$77.34
74+
$76.38
99+
$71.61
199+
$70.65
249+
$69.70
499+
$68.75
999+
$66.84
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Lazy Susan Turntable Bearings: Aluminium construction with fixing holes in inner plate, spins freely on a single row of captive ball bearings. Maximum load 420 lbs
Benefits: Heavy duty, rust and weather proof, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
The dimensions of this multisourced, semi-precision component are approximate. Actual dimensions available on request.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 525mm = 20.67 inch
- Outside Diameter:
- 580mm = 23.62 inch
- Thickness:
- 12mm = 0.47 inch
Technical
Technical

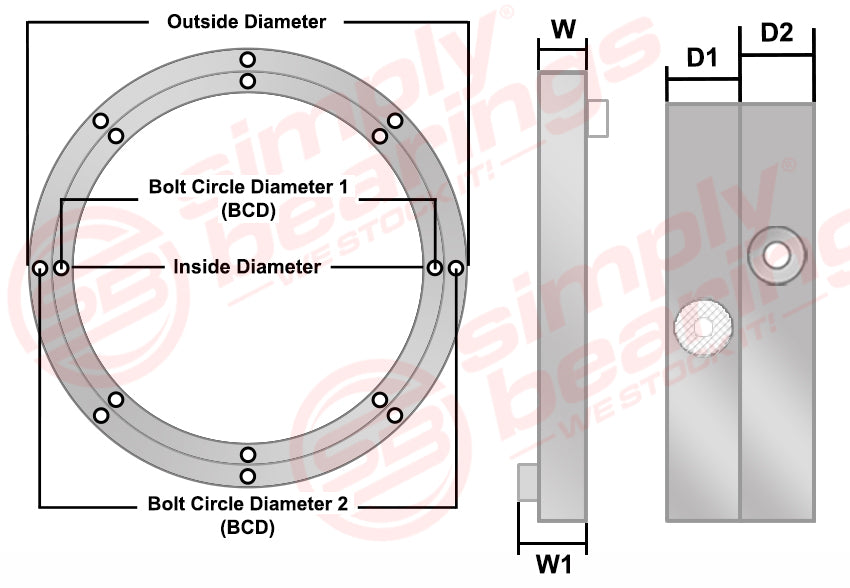

| Nominal Inside Diameter | 525mm = 20.67 inch |
|---|---|
| Nominal Outside Diameter | 580mm = 22.83 inch |
| W | 12mm = 0.47 inch |
| W1 | 16mm = 0.63 inch |
| D1 | 18.75mm = 0.74 inch |
| D2 | 18.75mm = 0.74 inch |
| Bolt Hole Diameter | 5mm = 0.19 inch |
| Bolt Circle Diameter 1 | 528mm = 20.79 inch |
| Bolt Circle Diameter 2 | 561mm = 22.87 inch |
| Max Load Weight | 420 lbs |
| Weight | 2.1kg |
