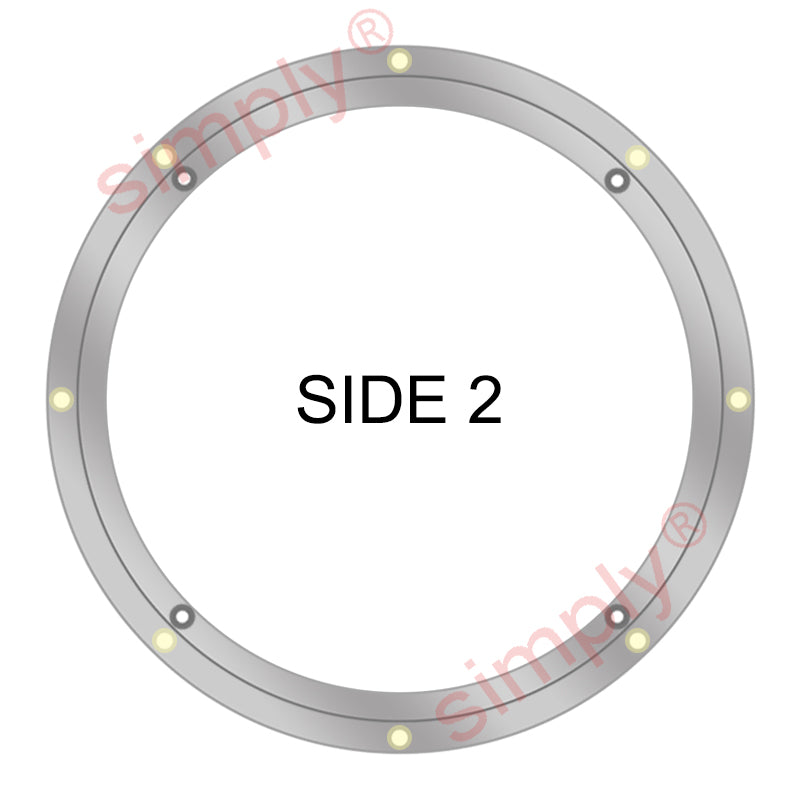

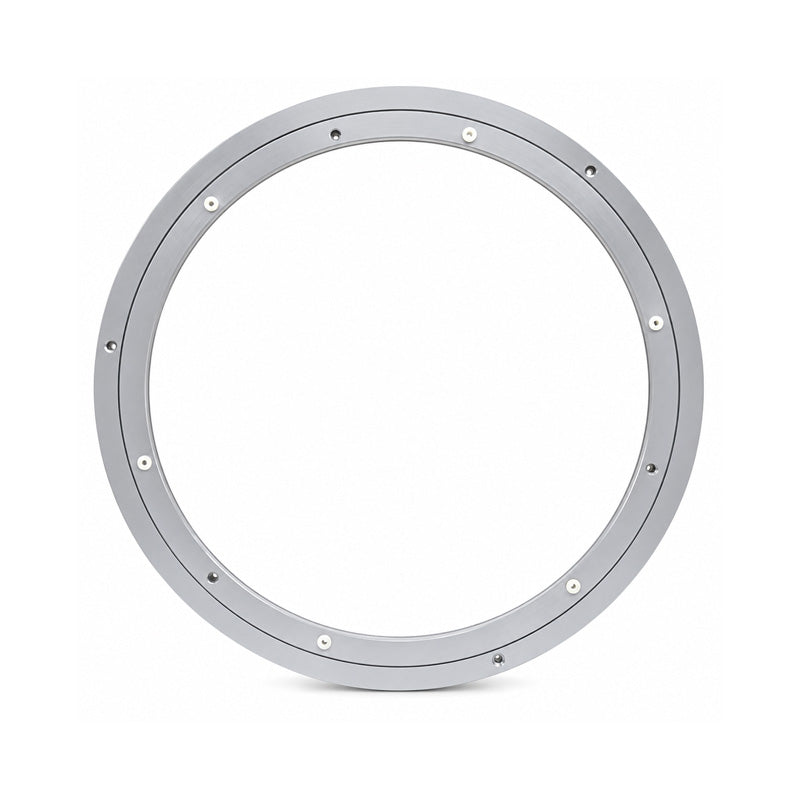

680mm Round Lazy Susan Rotating Aluminium Turntable Bearing
680mm Round Lazy Susan Rotating Aluminium Turntable Bearing
Regular price
$197.04
ex VAT
Regular price
Sale price
$197.04
ex VAT
In stock
Price Break
10+
$131.96
19+
$124.55
29+
$123.06
39+
$121.58
49+
$120.10
74+
$118.62
99+
$111.20
199+
$109.72
249+
$108.24
499+
$106.75
999+
$103.79
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Lazy Susan Turntable Bearings: Aluminium construction with fixing holes in inner plate, spins freely on a single row of captive ball bearings. Maximum load 460 lbs
Benefits: Heavy duty, rust and weather proof, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
The dimensions of this multisourced, semi-precision component are approximate. Actual dimensions available on request.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 600mm = 23.62 inch
- Outside Diameter:
- 680mm = 26.77 inch
- Thickness:
- 14mm = 0.55 inch
Technical
Technical
| Nominal Inside Diameter | 600mm = 23.62 inch |
|---|---|
| Nominal Outside Diameter | 680mm = 26.77 inch |
| W | 14mm = 0.55 inch |
| W1 | 18mm = 0.71 inch |
| D1 | 19.5mm = 0.77 inch |
| D2 | 20.5mm = 0.81 inch |
| Bolt Hole Diameter | 7.5mm = 0.29 inch |
| Bolt Circle Diameter 1 | 609.75mm = 24.01 inch |
| Bolt Circle Diameter 2 | 669.75mm = 26.37 inch |
| Max Load Weight | 460 lbs |
| Weight | 3kg |
