SKU: LAZY/800

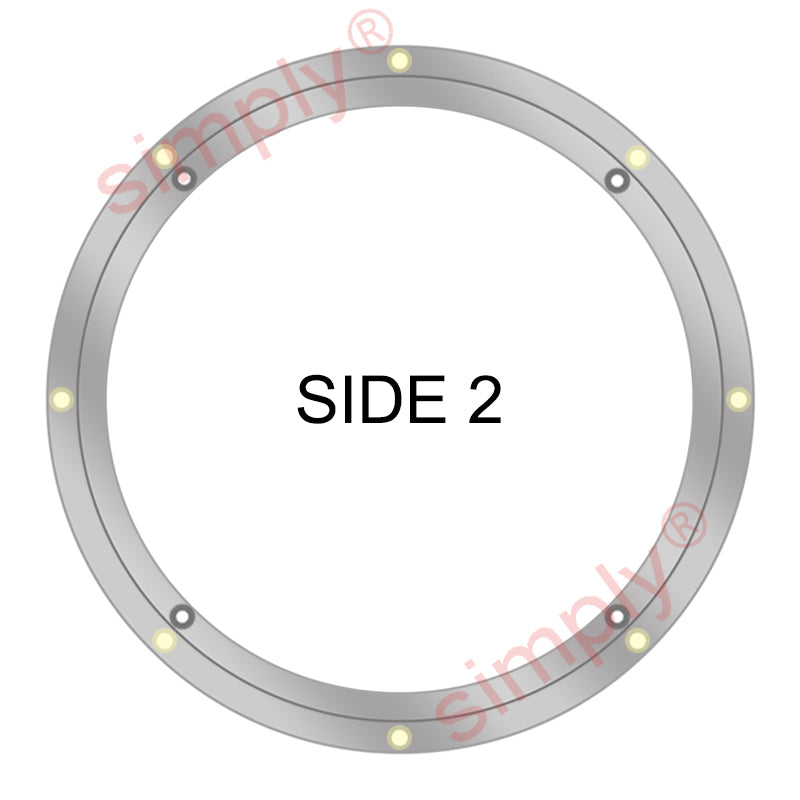

800mm Round Lazy Susan Rotating Aluminium Turntable Bearing
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
PLEASE NOTE: If ordering from outside of the UK, please enquire about shipping costs before placing an order.
Lazy Susan Turntable Bearings: Aluminium construction with fixing holes in inner plate, spins freely on a single row of captive ball bearings. Maximum load 505 lbs
Benefits: Heavy duty, rust and weather proof, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
The dimensions of this multisourced, semi-precision component are approximate. Actual dimensions available on request.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 709mm = 27.91 inch
- Outside Diameter:
- 800mm = 31.5 inch
- Thickness:
- 17.5mm = 0.69 inch
Technical
| Nominal Inside Diameter | 709mm = 27.91 inch |
|---|---|
| Nominal Outside Diameter | 800mm = 31.5 inch |
| W | 17.5mm = 0.69 inch |
| W1 | 20.5mm = 0.81 inch |
| D1 | 21mm = 0.83 inch |
| D2 | 24.5mm = 0.96 inch |
| Bolt Hole Diameter | 7.5mm = 0.29 inch |
| Bolt Circle Diameter 1 | 719.5mm = 28.33 inch |
| Bolt Circle Diameter 2 | 787.75mm = 31.01 inch |
| Max Load Weight | 505 lbs |
| Weight | 4kg |
