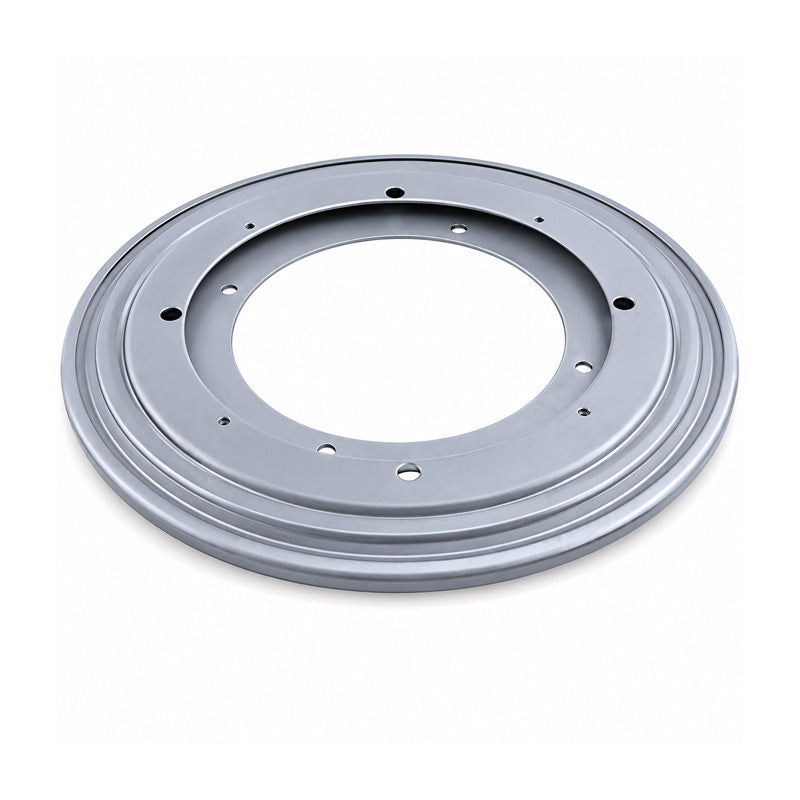

9 inch Round Lazy Susan Turntable Bearing
9 inch Round Lazy Susan Turntable Bearing
Regular price
$11.98
ex VAT
Regular price
Sale price
$11.98
ex VAT
In stock
Price Break
10+
$8.03
19+
$7.58
29+
$7.48
39+
$7.39
49+
$7.30
74+
$7.21
99+
$6.76
199+
$6.67
249+
$6.58
499+
$6.49
999+
$6.31
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Lazy Susan Turntable Bearings: Galvanised pressed steel construction with fixing holes in both upper and lower plates, spins freely on a single row of captive ball bearings. Maximum load 750 lbs
Benefits: High quality & low cost, resistant to corrosion, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
- Brand / Quality:
- Triangle Mfg - High Quality
- Inside Diameter:
- 114.3mm = 4.5 (4-1/2) inch
- Outside Diameter:
- 228.6mm = 9 inch
- Thickness:
- 8.33mm = 0.328 (21/64 ) inch
Technical
Technical
| Nominal Inside Diameter | 4.5 inch = 114.3mm |
|---|---|
| Nominal Outside Diameter | 9 inch = 228.6mm |
| W | 21/64 inch = 8.33mm |
| Pitch Circle Diameter | 6.18 inch = 157mm |
| Max Load Weight | 750 lbs |
| Weight | 0.452kg |
