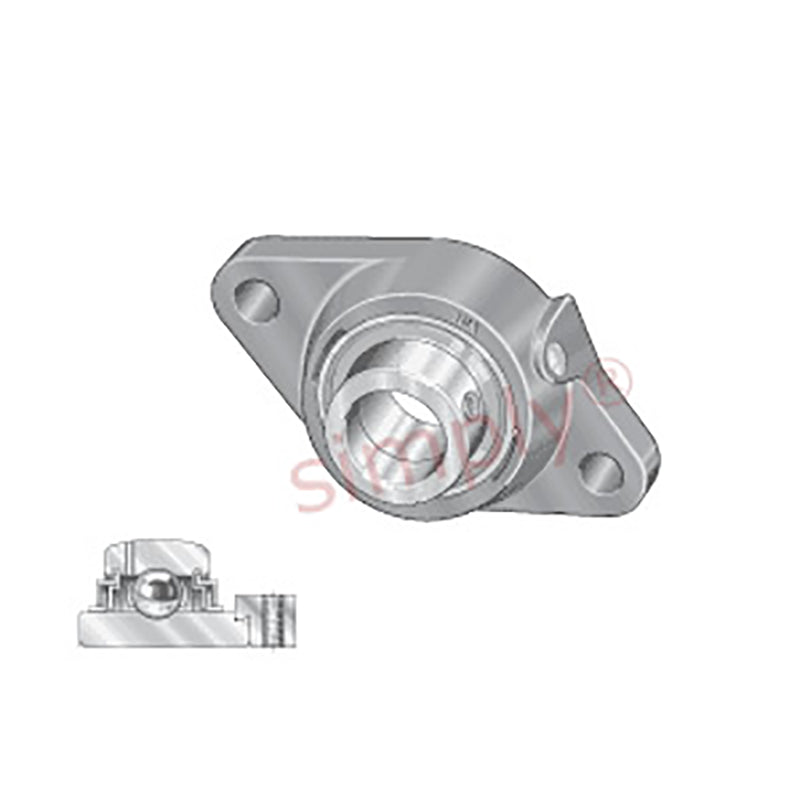

• INA LCJT35XLN Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert for Wide Temperatures 35mm Bore
  • INA
1 2

SKU: LCJT35-XL-N-INA

INA LCJT35XLN Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert for Wide Temperatures 35mm Bore

INA LCJT35XLN Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert for Wide Temperatures 35mm Bore
$88.40 ex VAT
$88.40 ex VAT
Sale Sold out

In stock

Price Break
4+ $59.21
9+ $55.89
19+ $55.22
29+ $54.55
39+ $53.89
49+ $53.22
59+ $49.90
69+ $49.23
79+ $48.57
89+ $47.90
99+ $46.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Temperature Range:
Wide Temp
Style:
LCJT
Bolt Hole Centres:
130mm
Technical
d 35mm
H 155mm
U 53.5mm
A 30.5mm
A1 12.5mm
A2 21mm
B1 51.3mm
d3 max 55mm
J 130mm
L 92mm
N 14mm
Q M6mm
V 92mm
Mass 1.19 kg
Basic dynamic load rating Cr 27500 N
Basic static load rating Cor 15300 N
Designation of housing CJT07
Designation of bearing GE35-XL-KLL-B
Bearing end cap, closed design (to be ordered separately) KASK07
