SKU: LFR.50/5-6.2RS.EU

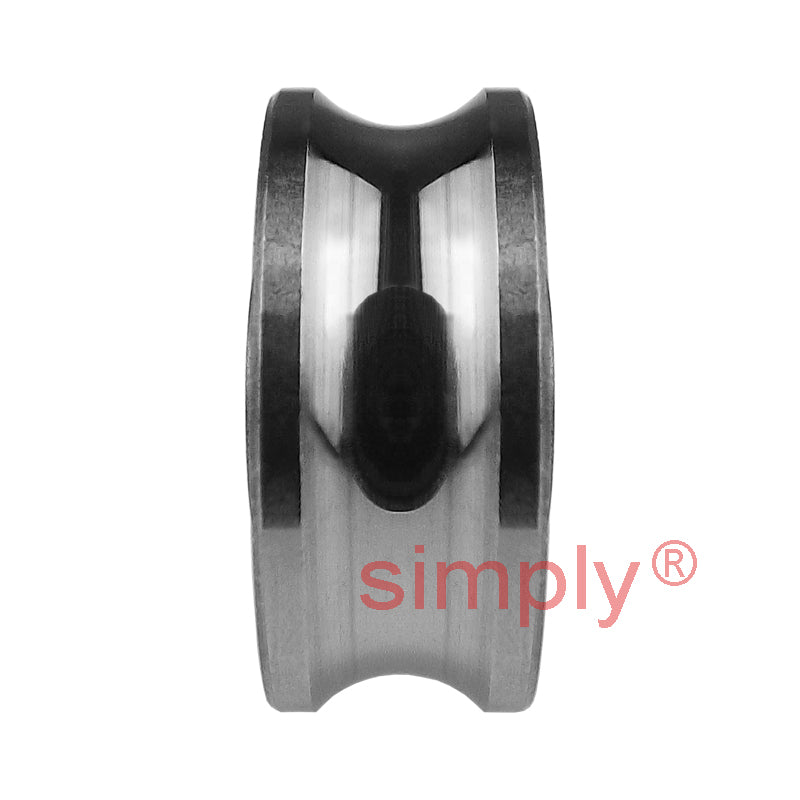

Budget LFR50/5-62RS Yoke Type Track Roller with U Groove 5x17x7/8mm

Name: Budget LFR50/5-62RS Yoke Type Track Roller with U Groove 5x17x7/8mm
Brand: Gen
SKU: LFR.50/5-6.2RS.EU
Price: 7.83 USD
Availability: InStock

$7.83 ex VAT

Sale Sold out

Equivalent to: LFR50/5NPP

In stock

Price Break

10+ $5.24

19+ $4.95

29+ $4.89

39+ $4.83

49+ $4.77

74+ $4.71

99+ $4.42

199+ $4.36

249+ $4.30

499+ $4.24

999+ $4.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Please note: This track roller has a different width for the inner and outer raceways, the inner is 8mm wide the outer is 7mm wide.
HEAD_RTRACK

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 5mm
Outside Diameter:: 17mm
Width:: 7mm / 8mm
Seals / Shields:: Rubber Sealed

Technical

d	5mm
D max	17mm
B	8mm
AT	10.5mm
C	7mm
ds	6mm
r min	0.2mm
Dynamic load	1270 N
Static load	820 N
Speed in grease	1300 rpm
Speed in oil	1780 rpm
